Weg
00152ET3E182T-SG
Motor, 1.5hp, 1200rpm, 6-Pole, 3 Phase, 230/460VAC, 60Hz, 182/4T Frame, NEMA Premium Efficiency, IC411 TEFC, Rolled Steel, Footed/No Flange, W01, AEGIS Bearing Protection Ring, IP55
$735.14
Available from manufacturer (as of 10/14/2026)
00152ET3E182T-W22G
$822.36
Motor, 1.5hp, 1200rpm, 6-Pole, 3 Phase, 230/460VAC, 60Hz, 182/4T Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/No Flange, W22, AEGIS Bearing Protection Ring, IP55, (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 99.67 LBS
- Minimum Purchase:
- 1 unit
Description

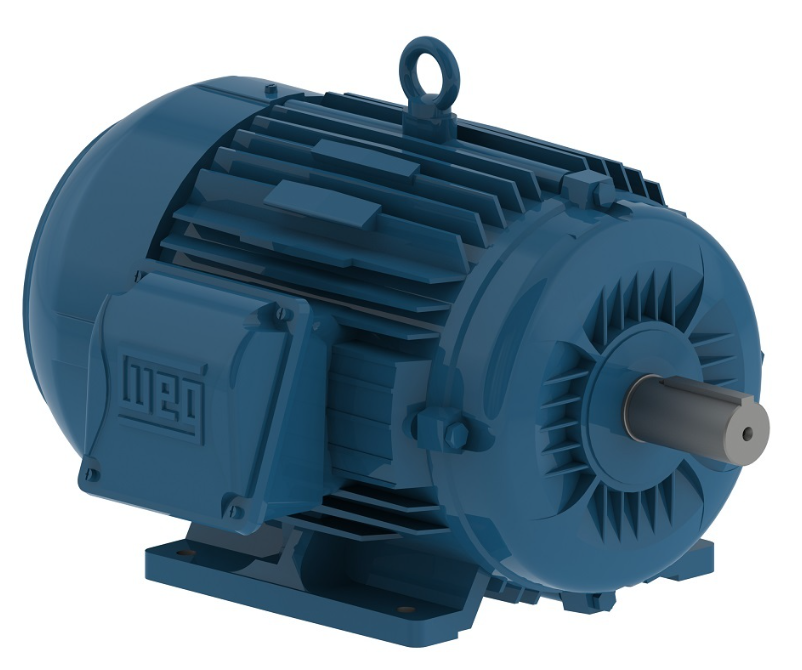

The WEG W22 TEFC motor line is built on a cast iron frame with solid, full-length feet and is designed for lower noise and cooler operation for general-purpose industrial applications. The line includes NEMA Premium and Super Premium Efficiency ratings.
Key Features
- Cast iron frame with solid feet for rigid mounting and reduced vibration
- 1.25 service factor through 100hp; 1.15 service factor on larger ratings
- Built to NEMA MG-1 standards
- Ratings from 1hp to 700hp
- 3600, 1800, 1200, 900 rpm synchronous speed options
- Three phase design
- Voltage options include 230/460V, 460V, 575V, 208-230/460V, 200-208/400V
- Totally enclosed fan cooled (TEFC) enclosure
- NEMA Premium Efficiency and Super Premium Efficiency levels
- Frame sizes from 143/5TC to 588/9TS
- Mounting options include footed, footless round body with C-face and footed with C-face
- Roller bearings on select models
- IP55 degree of protection
- AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
