Weg
.7536ES1BOL56-S
Motor, 3/4hp, 3600rpm, 2-Pole, Single Phase, 115/208-230VAC, 60Hz, 56 Frame, Standard Efficiency, IC411 TEFC, Rolled Steel, Footed/No Flange, Manual Overload Protection, IP55
$292.81
Available from manufacturer (as of 10/26/2026)
00136ES1B143T-S
Alt: This Item Replaced 00136ES1B143T
$492.17
Motor, 1hp, 3600rpm, 2-Pole, Single Phase, 115/208-230VAC, 60Hz, 143/5T Frame, Standard Efficiency, IC411 TEFC, Rolled Steel, Footed/No Flange, W01, IP55
- Weight:
- 33.68 LBS
- Minimum Purchase:
- 1 unit
Description

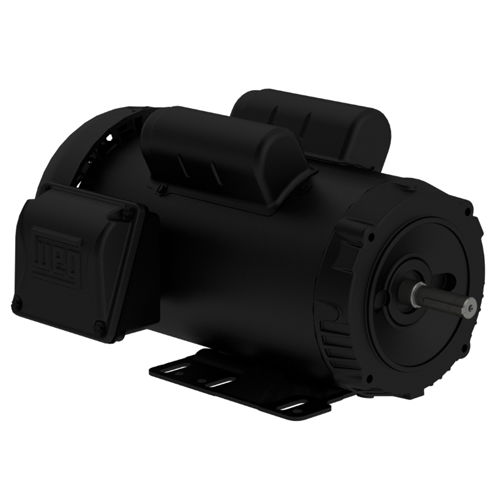

The WEG W01 Rolled Steel TEFC motor line is built for applications that need performance, robustness, and light weight in one product. Its rolled steel frame keeps weight down in a totally enclosed design.
Key Features
- Lightweight rolled steel frame
- Totally enclosed fan cooled (TEFC) design
- Ratings from 1hp to 25hp
- 3600, 1800, 1200 rpm synchronous speed options
- Single phase and three phase models
- Voltage options include 230/460V, 575V, 200/400V, 208-230/460V, 115/208-230V
- Totally enclosed fan cooled (TEFC) enclosure
- NEMA Premium Efficiency and Standard Efficiency levels
- Frame sizes from 143/5T to 254/6TC
- Mounting options include footed, footless round body with C-face, footed with C-face and footless with C-face
- IP55 degree of protection
- AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
.7536ES1BJPR56C-S
Motor, 3/4hp, 3600rpm, 2-Pole, Single Phase, 115/208-230VAC, 60Hz, 56C Frame, Standard Efficiency, IC411 TEFC, Rolled Steel, Footless Round Body/C-Flange, Jet Pump, JC Keyed Shaft, IP55
$303.49
Weg
.5036OT3E56CFL-S
Motor, 1/2hp, 3600rpm, 2-Pole, 3 Phase, 208-230/460VAC, 60Hz, 56C Frame, Premium Efficiency, IC01 ODP, Rolled Steel, Footless/C-Flange
$254.54
Weg
.5036OT1BW56-S
Motor, 1/2hp, 3600rpm, 2-Pole, Single Phase, 115/208-230VAC, 60Hz, W56 Frame, NEMA Premium Efficiency, IC01 ODP, Rolled Steel, Footed/No Flange
$250.98
Weg
.2536ES1BW56-S
Motor, 1/4hp, 3600rpm, 2-Pole, Single Phase, 115/208-230VAC, 60Hz, W56 Frame, Standard Efficiency, IC411 TEFC, Rolled Steel, Footed/No Flange, IP55
$228.73
