Weg
00118XT3E143TC

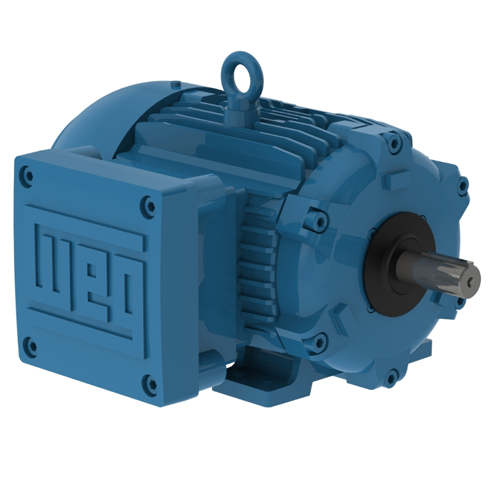

Motor, 1hp, 1800rpm, 4-Pole, 3 Phase, 230/460VAC, 60Hz, 143/5TC Frame, NEMA Premium Efficiency, IC411 TEFC, Footed/C-Flange, W21 Explosion Proof, IP55
$938.06
Available from manufacturer (as of 10/16/2026)
00118XT3E143T
$801.89
Motor, 1hp, 1800rpm, 4-Pole, 3 Phase, 230/460VAC, 60Hz, 143/5T Frame, NEMA Premium Efficiency, IC411 TEFC, Footed/No Flange, W21 Explosion Proof, IP55
- Weight:
- 69.49 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG W21 Explosion Proof motor line is designed for hazardous locations. The line includes three phase models in Explosion Proof enclosure.
Key Features
- Ratings from 1hp to 500hp
- 110kW IEC rating available
- 3600, 1800, 1500, 1200, 900 rpm synchronous speed options
- Three phase design
- Voltage options include 230/460V, 575V, 460V, 208-230/460V, 380-400-415/660-690V
- Explosion proof enclosure
- IE3 and NEMA Premium Efficiency levels
- Frame sizes from 143/5T to 586/7T
- Mounting options include footed, footed with C-face and footless round body with C-face
- Roller bearings on select models
