Weg
00118ET3E143JM-S

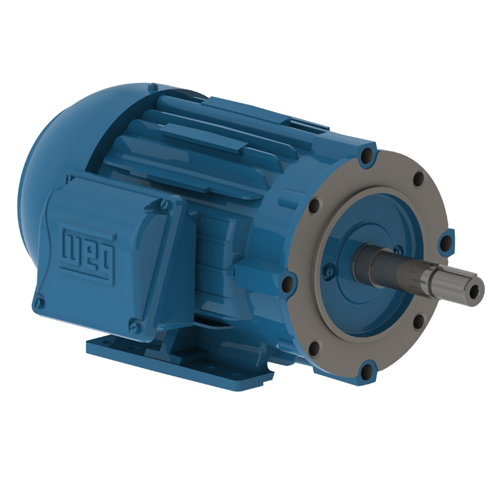

Motor, 1hp, 1800rpm, 4-Pole, 3 Phase, 230/460VAC, 60Hz, 143/5JM Frame, NEMA Premium Efficiency, IC411 TEFC, Footed/C-Flange, Rolled Steel Close-Coupled Pump, IP55
$545.57
Available from manufacturer (as of 10/22/2026)
00118ET3E143JM-W22
Alt: This Item Replaced 00118EP3E143JM-W22
$545.57
Motor, 1hp, 1800rpm, 4-Pole, 3 Phase, 230/460VAC, 60Hz, 143/5JM Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/C-Flange, W22 Close-Coupled Pump, IP55
- Weight:
- 51.58 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG W22 Close-Coupled Pump motor line was developed specifically for direct-drive pumps in both JM and JP versions. JM motors use a shorter shaft that limits vibration and radial movement to help extend pump seal life, while JP motors use a longer shaft.
Key Features
- Designed for direct-drive close-coupled pumps
- JM and JP shaft configurations
- Cast iron W22 frame construction
- Ratings from 1hp to 100hp
- 3600, 1800, 1200 rpm synchronous speed options
- Single phase and three phase models
- Voltage options include 230/460V, 208-230/460V, 575V, 200-208/400V, 208-230V
- Totally enclosed fan cooled (TEFC) enclosure
- NEMA Premium Efficiency and Standard Efficiency levels
- Frame sizes from 143/5JM to 404/5JP
- Footed with C-face mounting
- IP55 degree of protection
- AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
