Weg
06018ET3E364TC-W22
W22 NEMA Premium Efficiency, 60 HP,1800 RPM, 4P, 364/5TC, 3Ph, 230/460//380 V, 60//50 Hz IC411 - TEFC - Foot-mounted, Left Position Terminal Box, TEFC, IP55
$6,969.59
Available from manufacturer (as of 10/12/2026)
00118ES1E143JM-W22
Alt: This Item Replaced 00118ES1E143JM
$611.43

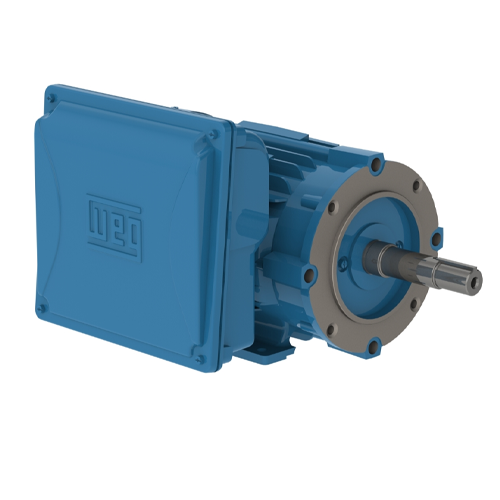

Motor, 1hp, 1800rpm, 4-Pole, Single Phase, 208-230/460VAC, 60Hz, 143/5JM Frame, Standard Efficiency, IC411 TEFC, Cast Iron, Footed/C-Flange, W22 Close-Coupled Pump, IP55
- Weight:
- 67.87 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG W22 Close-Coupled Pump motor line was developed specifically for direct-drive pumps in both JM and JP versions. JM motors use a shorter shaft that limits vibration and radial movement to help extend pump seal life, while JP motors use a longer shaft.
Key Features
- Designed for direct-drive close-coupled pumps
- JM and JP shaft configurations
- Cast iron W22 frame construction
- Ratings from 1hp to 100hp
- 3600, 1800, 1200 rpm synchronous speed options
- Single phase and three phase models
- Voltage options include 230/460V, 208-230/460V, 575V, 200-208/400V, 208-230V
- Totally enclosed fan cooled (TEFC) enclosure
- NEMA Premium Efficiency and Standard Efficiency levels
- Frame sizes from 143/5JM to 404/5JP
- Footed with C-face mounting
- IP55 degree of protection
- AEGIS bearing protection ring installed inside on select models (catalog numbers ending in G)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
00336ET3E182JM-W22
Motor, 3hp, 3600rpm, 2 Pole, 182/4JM Frame, 230/460//380V, 60//50Hz, Three Phase, W22 Close Coupled Pump JM NEMA Premium Efficiency , IC411 TEFC, Footed, C Flange, F-1 Mounting, Left Position Terminal Box, IP55
$817.02
Weg
00336ET3EAL100L-W22
Motor, 4hp, 3600rpm, 2 Pole, 100L Frame, Three Phase, 230/460V, 60Hz / 380V, 50Hz / 415V, 50Hz, Aluminum IC411 TEFC, Footed, No Flange, B3L(E) Mounting, Right Position Terminal Box, IP55
$716.45
Weg
00158ET3H145TC-W22
Motor, 1.5hp, 1800rpm, 3 Phase, 575V, 143/5TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty
$515.31
Weg
03012ST3QIE326T-W22
Motor, 30hp, 1200rpm, 6-Pole, 3 Phase, 460VAC, 60Hz, 324/6T Frame, NEMA Premium Efficiency, IC411 TEFC, Cast Iron, Footed/No Flange, W22 IEEE 841 Severe Duty, IP56, (Cannot Ship UPS, Drop Ship Only via Truck)
$4,769.51
