Teco Westinghouse
XP7/54C

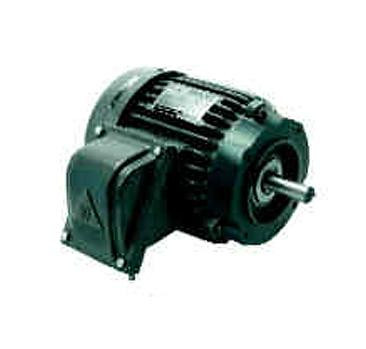

Motor, XP, 7.5hp, 1800rpm, 3 Phase, 230/460V, 213TC AEHHXG/AEHHXF, NEMA Premium, Footed, C-Face, IP55
$1,359.25
S7/54C
$1,279.58

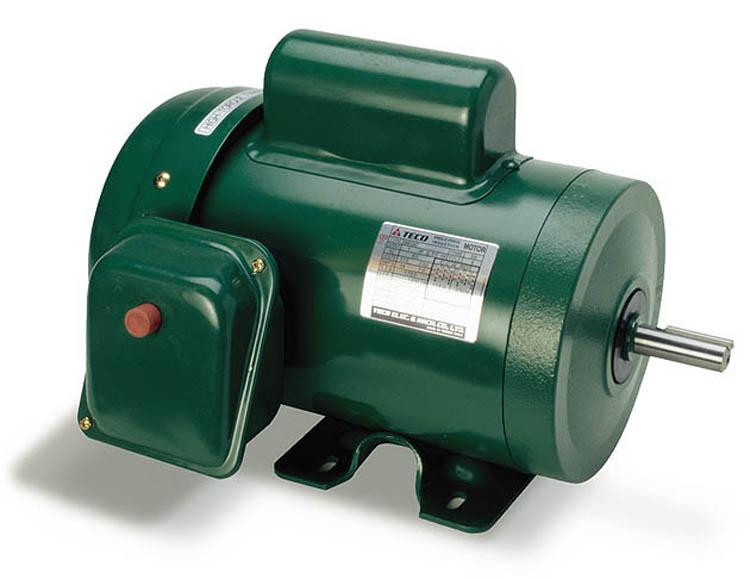

Motor, Single Phase, 7.5hp, 1800rpm, 213TC, Footed, C-Face, Cast Iron, 230V, Cap. Start/Split Cap Run
- Weight:
- 200.00 LBS
- Minimum Purchase:
- 1 unit
Description
- Available in 3600 and 1800 rpm
- TEFC - totally enclosed fan cooled, IP44
- Voltage: 115/208/230; 3hp and larger are 208-230V
- Capacitor start, capacitor run
- Class F insulation
- Designed for 40°C ambient temperature and 3300 foot elevation
- Bi-directional rotation
- Rolled steel frame
- 1045 carbon steel shaft
Teco HVAC single phase TEFC motors are designed for fans, pumps, compressors, a/c blowers, heating and ventilation applications.
Marshall Wolf Automation is your authorized stocking Teco distributor!
- Available in 3 types; BEGCFD and BECCFD are capacitor start/induction run and BECSFD is capacitor start/permanent spit capacitor run
- Available from 1/3 to 10 hp
- Totally enclosed fan cooled (TEFC), IP44
- High torque design
- Single phase, 60Hz
- 115/230V (3 hp and larger are 230V only)
- 36 month warranty from date of manufacturer
- 1.15 service factor - continuous
- Class B insulation 1/3 to 3hp and Class F insulation from 1.5 to 10hp
- 1045 carbon steel shaft
- Available in a number of frames, in cast iron or rolled steel
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Teco Westinghouse
PM7/54C
Motor, 7.5hp, 1800rpm, 230/460V, 213T Frame, 91.9% FL Efficiency, 10.4 FL Amps (460V), 3 Phase, TEFC, Footed, IP55, Super Premium Efficiency Permanent Magnet Motors, MAX-PM™ (PMAC Motor) (Drop Ship Only Via Truck)
$1,270.88
Teco Westinghouse
EPV7/54C
Motor, 7.5hp, 1800rpm, 213TC Frame 8.85FL A (460V) 230/460V Round Body, C-Face, MAX-E1™ NEMA Premium TEFC
$925.26
Teco Westinghouse
EPV1/54C
Motor, 1.5hp, 1800rpm, 145TC Frame 2.08FL A (460V) 230/460V Round Body, C-Face, MAX-E1™ NEMA Premium TEFC
$424.96
Teco Westinghouse
XP1/54C

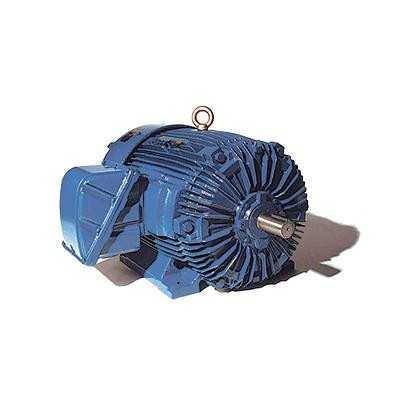

Motor, Explosion Proof, 1.5hp, 1800rpm, 4-Pole, Three Phase, 230/460V, 60Hz, 145TC Frame, 86.5% Full Load Efficiency, 75.5% Full Load Power Factor, 2.1 FL A (460V), AEHHXF Type, Footed, C-Face, TEXP NEMA Premium Efficiency, IP55, Crated-Must Ship LTL
$688.87
