Weg
00158NT3FVD145TC-W22
Motor, 1.5hp, 900rpm, 3 Phase, 230/460V, 404/5T, Severe/Vector Duty, TENV Foot Mount, Double C-Face
$627.45
07518ET3ECT365T-W22
Alt: 11976413
$8,832.36

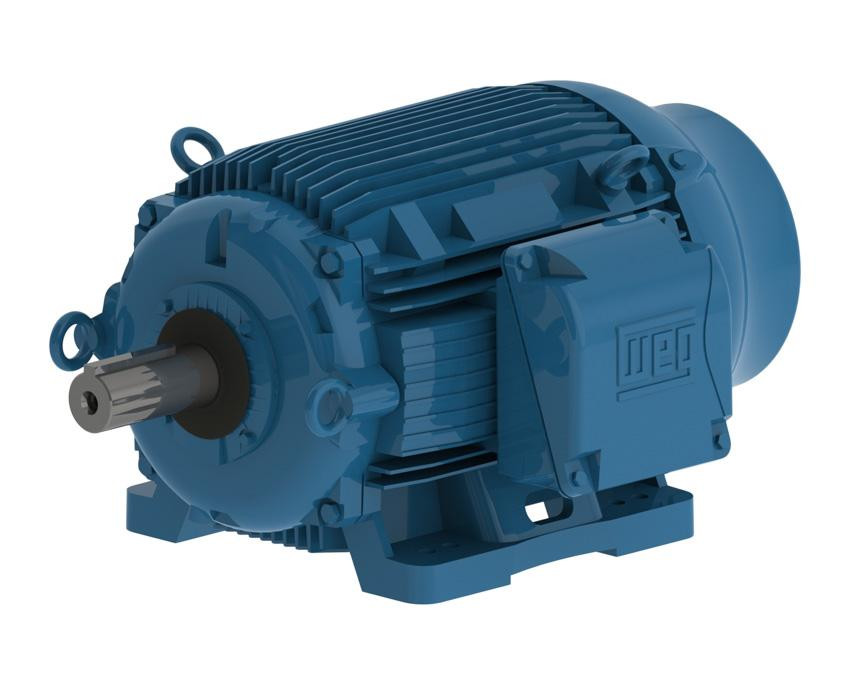

Motor, 75hp, 1800rpm, 4-Pole, Three Phase, 230/460//380V, 60//50Hz, 364/5T Frame, Cooling Tower NEMA Premium Efficiency, TEFC, Footed, No Flange, F-2 Mounting, Right Position Terminal Box, IP55 (Cannot Ship UPS, Drop Ship Only Via Truck)
- Weight:
- 1,040.00 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Features Include:
- Standard: NEMA MG-1
- Frequency: 60//50 Hz
- Voltage: 230/460//380 V
- Number of poles: 4
- Degree of Protection: IP55
- Synchronous speed: 1800 rpm
- Output rating: 75 HP
- Mounting: Foot-mounted
- Flange: Without
- Mounting: F-2
- Terminal box¹: Right position
- Enclosure: IC411 - TEFC
- Rated voltage: 230/460 V
- Rated current: 174/87.2 A
- L. R. Amperes: 1116/558 A
- No load current: 66.0/33.0 A
- Rated torque: 221 ft.lb
- Starting Method: Direct On Line
Technical Information:
- Weg 07518ET3ECT365T-W22 Motor Datasheet
- Weg W22 Three-Phase Electrical Motor Brochure
- Weg W22 Three-Phase Electric Motor Technical Catalog
- Weg Three-Phase General Purpose Motor Catalog
- Weg Three-Phase General Purpose Motor Instruction Manual
- Weg Three-Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg Standard Product Catalog
- Warranty Terms for Weg Automation Products
- 'Extend to a 3 Year Warranty' Form
