Weg
00212ET3E184T-W22
Motor, 2hp, 1200rpm, 3 Phase, 208-230/460V, 182/4T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
$614.25
00718ET3EID213TC-W22
Alt: 12809031
$901.50

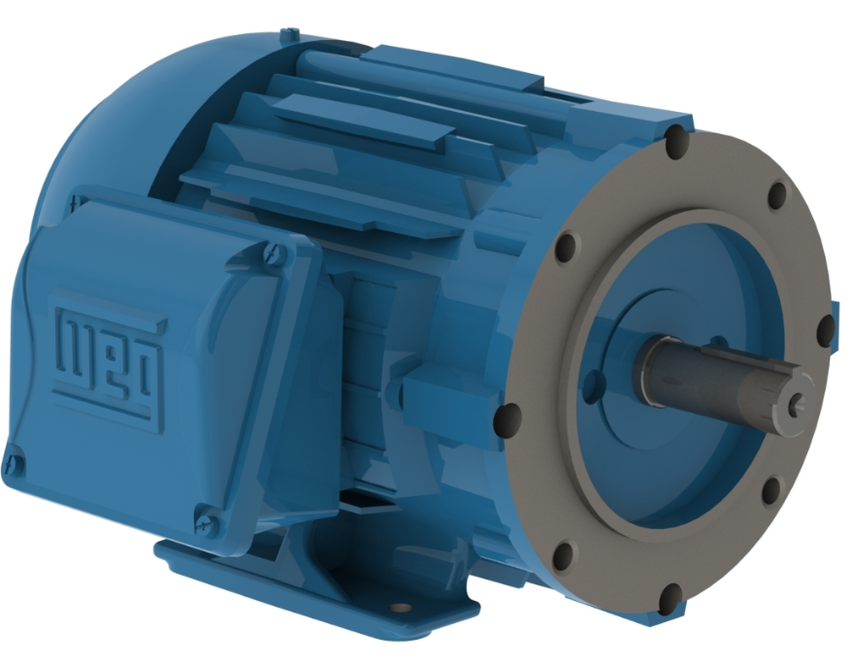

Motor, 7.5hp, 1800rpm, 3 Phase, 230/460V, 213/5TC, Farm Duty-Irrigation Duty, TEFC C-Face Foot Mount
- Minimum Purchase:
- 1 unit
Description
Motor, 7.5hp, 1800rpm, 3-Phase 230/460V, 213/5TC, Farm Duty-Irrigation Duty, TEFC C-Face Foot Mount
Features Include:
- Output Rating: 7.5 HP (5.5 kW)
- Rated Voltage: 208-230/460 V
- Rated Current: 19.9-18.4/9.18 A
- Synchronous Speed: 1800 rpm
- Rated Speed: 1765 rpm
- Rated Torque: 22.0 ft.lb
- Number of Poles: 4
- Frequency: 60 Hz
- No-Load Current: 7.59-8.80/4.40 A
- Starting Method: Direct on Line
- Mounting: Foot-Mounted, F-1
- Enclosure: IC411 - TEFC
- Frame: 213/5TC
Need More Information?
- Weg W22 Three-Phase Electrical Motor Brochure
- Weg W22 Three-Phase Electric Motor Technical Catalog
- Weg Three-Phase General Purpose Motor Catalog
- Weg Three-Phase General Purpose Motor Instruction Manual
- Weg Three-Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
- 'Extend to a 3 Year Warranty' Form
