00712ET3E254TC-S

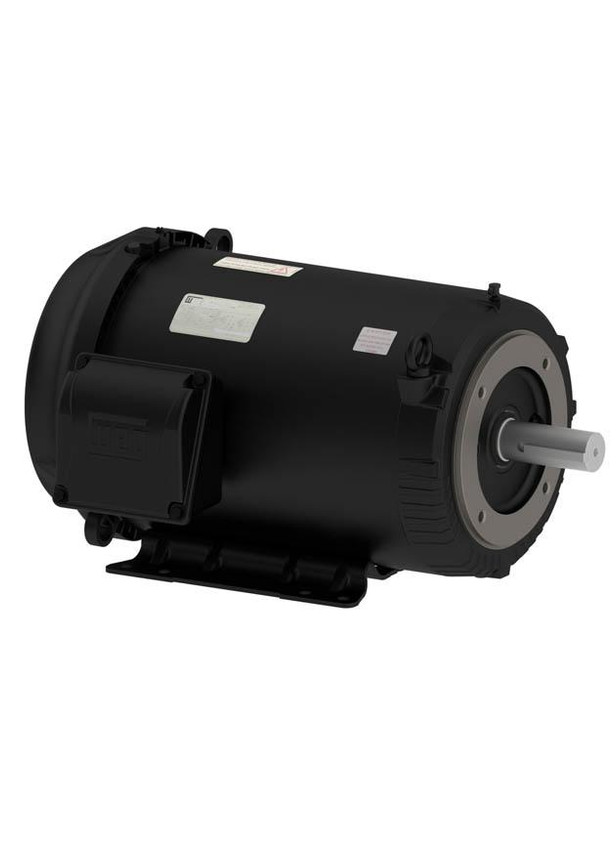

Motor, 3 Phase, 7.5hp, 1200rpm, C-Face, Foot Mnt, Rolled Steel, 208-230/460V, 254TC Frame,

Product Features:

Frame

• 254/6TC


Rated Voltage

• 208-230/460 V

Frequency

• 60 Hz

Rated Speed

• 1175 rpm

No Load Current

• 5.03-10.1/5.03 A

Rated Current

• 22.1-20.0/9.98 A

Rated Torque

• 33.1 ft.lb

Frame Material

• Rolled Steel

Approx. Weight

• 224 lb
