Weg
00718ET3E213TC-S
Motor, 7.5hp, 1800rpm, 3 Phase, 230V, 213/5TC, NEMA Premium Efficiency TEFC, Footed/C Face, Rolled Steel
$745.50
00118OT3H143T-S
Alt: 12682569
$292.50
Motor, 1hp, 1800rpm, 3 Phase, 575V, 143/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel
- Minimum Purchase:
- 1 unit
Description

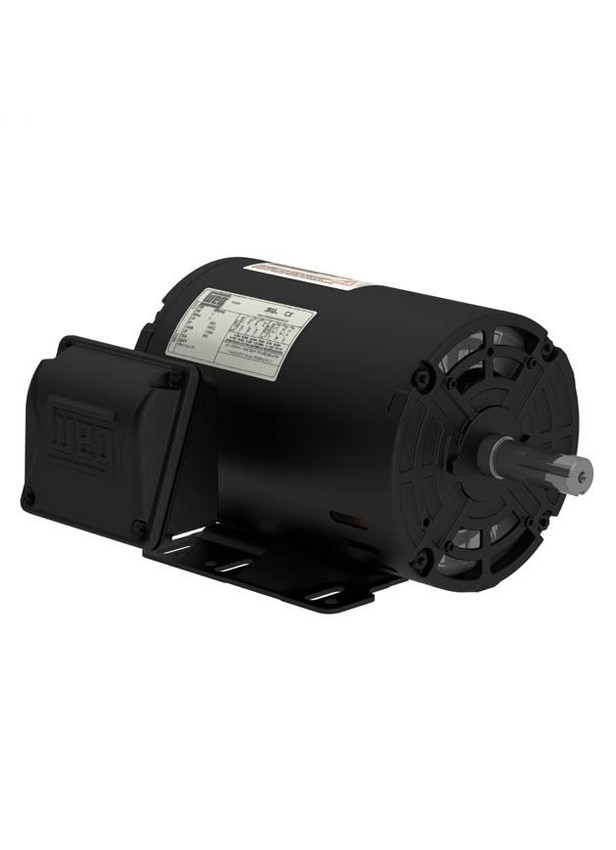

Motor, 3 Phase, 1hp, 1800rpm, ODP, Foot Mount, Rolled Steel, 575V, 143T Frame
Product Features:
Frame
- 143/5T
Rated Voltage
- 575 V
Frequency
- 60 Hz
Rated Speed
- 1760 rpm
No Load Current
- 0.766 A
Rated Current
- 1.21 A
Rated Torque
- 0.407 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 15.7 lb
Need More Information?
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
00212ET3H184T-S
Motor, 2hp, 1200rpm, 3 Phase, 575V, 182/4T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
$534.75
Weg
01536ET3H254T-S
Motor, 15hp, 3600rpm, 3 Phase, 575V, 254/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
$1,191.75
Weg
00118ET3E143T-S
Motor, 1hp, 1800rpm, 3 Phase, 208-230/460V, 143/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
$344.25
Weg
00718OT3P213T-S
Motor, 7.5hp, 1800rpm, 3 Phase, 200V, 213/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel
$682.50
