$38.11
00218OT3P145T-S
Alt: 12674795
$424.50

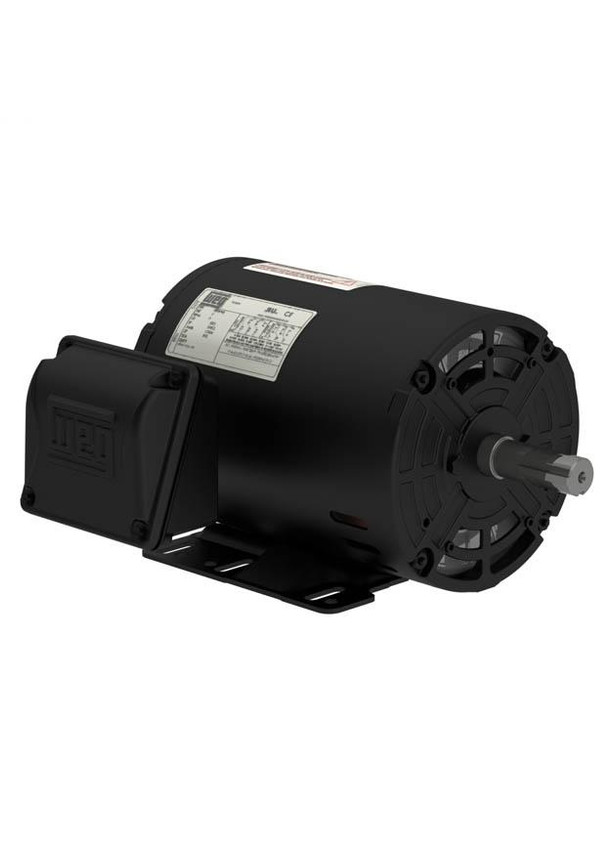

Motor, 2hp, 1800rpm, 3 Phase, 200V, 143/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel
- Weight:
- 47.30 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 1.5hp, 1800rpm, ODP, Foot Mount, Rolled Steel, 200V, 145T Frame
Product Features:
Frame
- 143/5T
Rated Voltage
- 200 V
Frequency
- 60 Hz
Rated Speed
- 1740 rpm
No Load Current
- 3.16 A
Rated Current
- 6.19 A
Rated Torque
- 0.823
Frame Material
- Rolled Steel
Approx. Weight
- 18.2 lb
