Weg
00152ET3H182T-W22

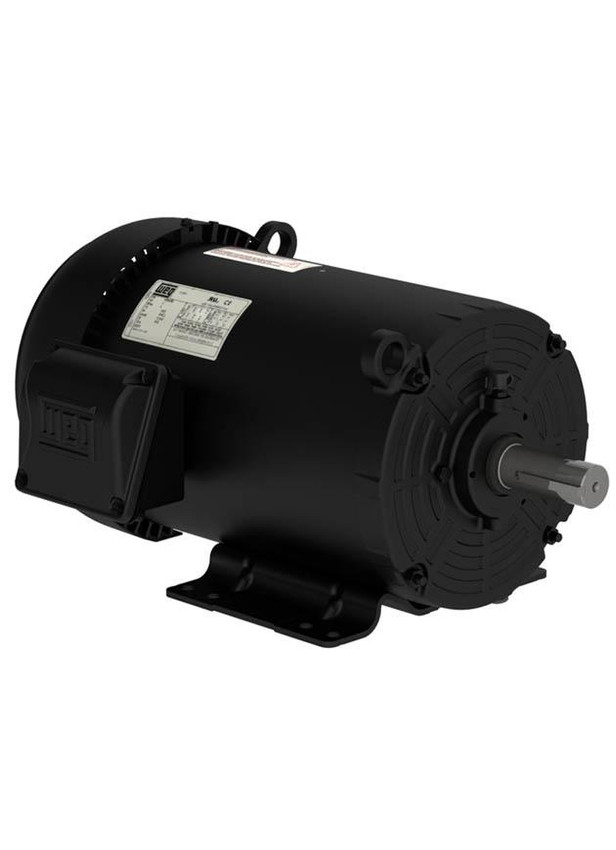

Motor, 1.5hp, 1200rpm, Three Phase, 575V, 182/4T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty, (Cannot Ship UPS, Drop Ship Only via Truck)
$565.50
00152ET3H182T-S
Alt: 12675411
$492.00
Motor, 1.5hp, 1200rpm, 3 Phase, 575V, 182/4T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 1.5hp, 1200rpm, TEFC, Foot Mount, Rolled Steel, 575V, 182T Frame
Product Features:
Frame
- 182/4T
Rated Voltage
- 575 V
Frequency
- 60 Hz
Rated Speed
- 1170 rpm
No Load Current
- 1.09 A
Rated Current
- 1.78 A
Rated Torque
- 0.918
Frame Material
- Rolled Steel
Approx. Weight
- 31.7 lb
Need More Information?
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
