Weg
00312ET3EAL132M-W22
Motor, 4hp, 1200rpm, 6 Pole, 132M Aluminum Frame, 230/460//190/380V, 60Hz, NEMA MG-1, IC411 TEFC, Footed, No Flange, B3L(E) Mounting, Right Position Terminal Box, IP55
$1,109.83
25018ET3GKD447T-W22
Alt: Crusher Duty
$22,692.88
Motor, 250hp, 1800rpm, 3 Phase, 460V, 445/7T, Severe Duty, Crusher Duty, TEFC Foot Mount
- Weight:
- 2,993.00 LBS
- Minimum Purchase:
- 1 unit
Description
Weg's Crusher Duty motors are designed for your most demanding crusher applications!
- Three phase
- TEFC-NEMA Premium
- Mount horizontally or vertically
- Exceptional high starting and breakdown torques
- W22 cast iron platform
- Superior cooling system and solid feet for cool operation and low vibration and noise
- Oversized roller bearings
Need a crusher duty soft starter? Search Weg's TPH2 series now!
Features Include:
Output Rating:
- 250 HP (185 kW)
Rated Voltage:
- 460 V
Rated Current:
- 281 A
Synchronous Speed:
- 1800 rpm
Rated Speed:
- 1780 rpm
Rated Torque:
- 728 ft.lb
Number of Poles: 4
Frequency: 60 Hz
No-Load Current: 90.0 A
Starting Method:
- Direct On Line
Mounting:
- Foot-Mounted, F-1
Enclosure:
- IC411 - TEFC

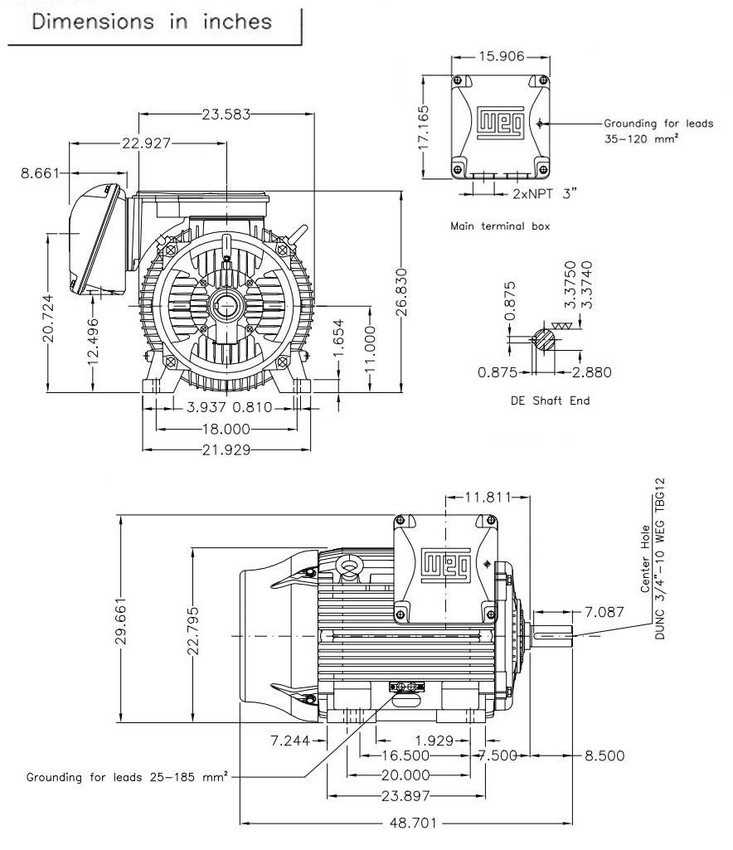

Frame: 445/7T
Frame Material: Cast Iron
