Weg
01512ET3E284TC-W22
Motor, 15hp, 1200rpm, 3 Phase, 208-230/460V, 284/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty
$2,944.36
00158ES1E145JM-W22
Alt: 14183485
$671.06

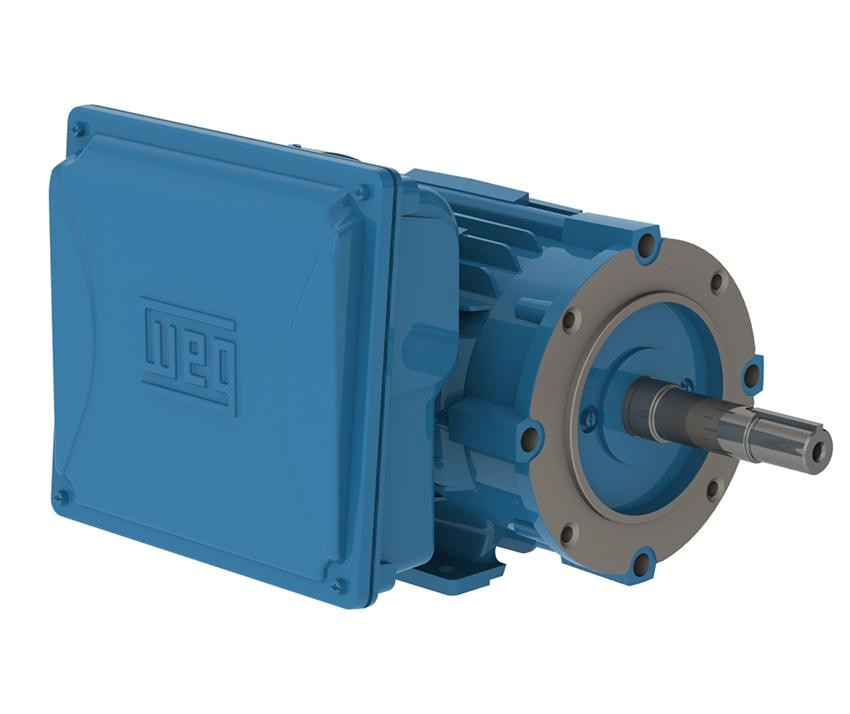

Motor, 1.5hp, 1800rpm, 4 Pole, Single Phase, 208-230/460V, 60Hz, 143/5JM Cast Iron Frame, IC411 - TEFC, Footed/C Flange, F-1 Mounting, Left Position Terminal Box, JM Pump, IP55
- Weight:
- 68.20 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Features Include:
- Standard: NEMA MG-1
- Frequency: 60 Hz
- Voltage: 208-230/460 V
- Number of poles: 4
- Degree of Protection: IP55
- Synchronous speed: 1800 rpm
- Output rating: 1.5 HP (1.1 kW)
- Frame: 143/5JM
- Mounting: Foot-mounted
- Flange: Without
- Mounting: F-1
- Terminal box¹: Left position
- Enclosure: IC411 - TEFC
- Rated voltage: 208-230/460 V
- Rated current: 7.00-6.76/3.38 A
- L. R. Amperes: 56.0-54.1/27.0 A
- No load current: 1.98-2.30/1.15 A
- Rated torque: 4.49 ft.lb
- Starting Method: Direct On Line
Technical Information:
- Weg 00158ES1E145JM-W22 Motor Datasheet
- Weg W22 Three-Phase Electrical Motor Brochure
- Weg W22 Three-Phase Electric Motor Technical Catalog
- Weg Three-Phase General Purpose Motor Catalog
- Weg Three-Phase General Purpose Motor Instruction Manual
- Weg Three-Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
- 'Extend to a 3 Year Warranty' Form
