Carlo Gavazzi

DIB01CB235A

$153.85

Monitoring Relay, Single Phase, 0.1-5A AC/DC, SPDT, 115/230VAC, DIN Rail Mount

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
DIB01CB235A
DIB01CB235A
DIB01CB235A
DIB01CB235A
DIB01CB235A
DIB01CB235A
Description

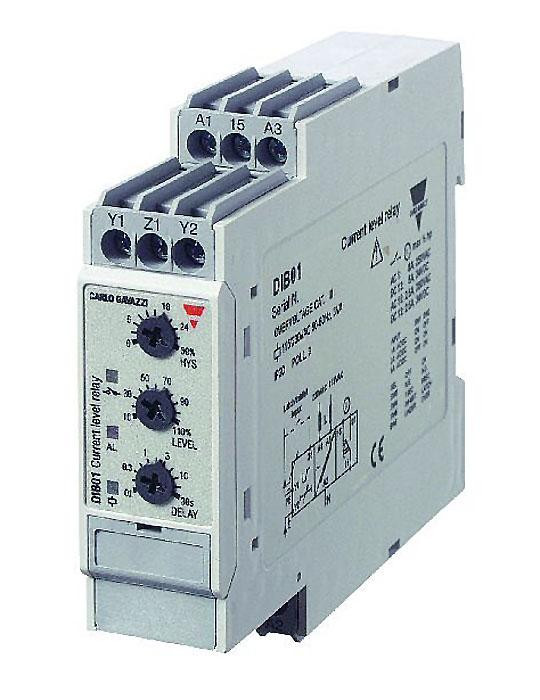

Monitoring Relay, 1-Phase, 0.1-5A AC/DC, SPDT, 115/230VAC, DIN-Rail Mount

Features Include:

  • TRMS AC/DC over or under current monitoring relay
  • Current measuring through internal shunt
  • Selection of measuring range by DIP-switches
  • Measuring ranges from 0.1 mA to 10 A AC/DC
  • Adjustable current on relative scale
  • Adjustable hysteresis on relative scale
  • Adjustable delay function (0.1 to 30 s)
  • Programmable latching or inhibit at set level
  • Output: 8 A SPDT relay N.D. or N.E. selectable
  • For mounting on DIN-rail in accordance with DIN/EN 50 022 (DIB01) or plug-in module (PIB01)

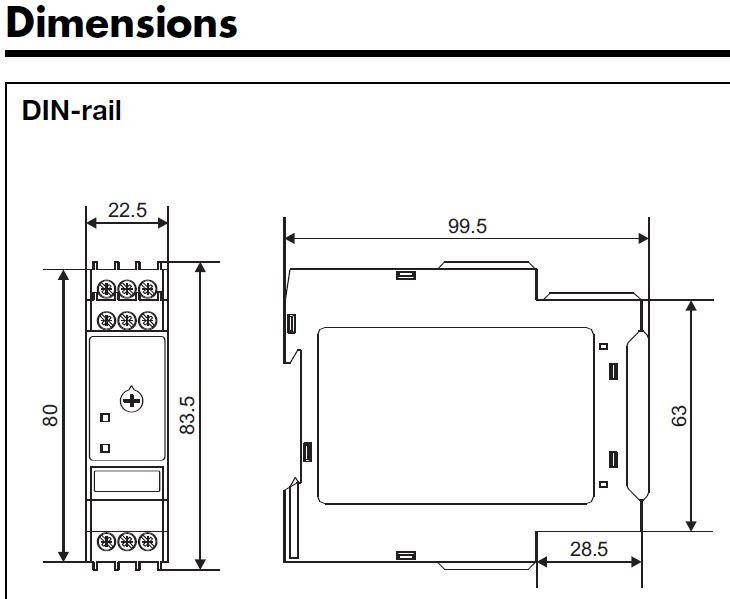

  • 22.5 mm Euronorm housing (DIB01) or 36 mm plug-in module (PIB01)
  • LED indication for relay, alarm and power supply ON
  • Galvanically separated power supply
