$25.37
Available Now!
Product image is representative only, please verify specifications.
Available Now!
(1 in stock)
200 more available from manufacturer (as of 11/9/2026)
MK V11D15
Alt: This is the Suggested Replacement for MV 15
$23.89

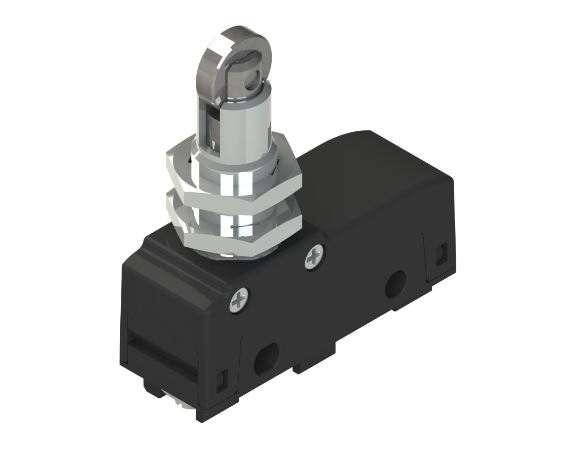

Microswitch with Roller Plunger
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description

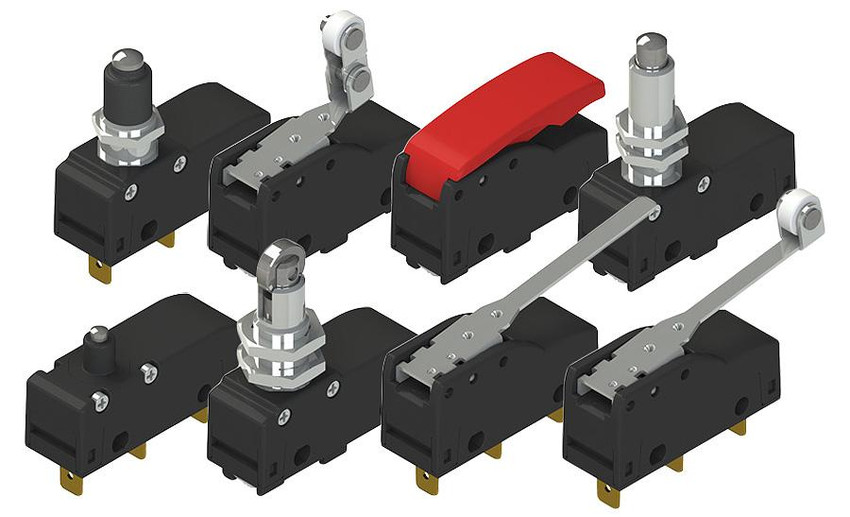

Series Features Include:
- Glass fiber reinforced technopolymer, self-extinguishing and shock-proof housing
- Protection degree IP00 (without terminal cover), IP20 (with terminal covers VF C01, VF C03), IP40 (with terminal covers VF MKCx1x, VF C02) or IP65 (with terminal covers VF MKCx22 + MK Vx2xxx or VF MKCx23 + MK Hx2xxx)
- 4 terminal types available (MK V: screw with self-lifting plate, MK H: vertical faston, MK F: faston, 45° bend to the right, MK G: faston, 45° bend to the left (on request)
- 52 actuators available
- Versions with positive opening
- Versions with gold-plated silver contacts
- Terminal covers with strain relief cable gland
- Thermal current (Ith): 16 A
- Rated insulation voltage (Ui): 250 VAC 300 VDC
- Rated impulse withstand voltage (Uimp): 4 kV
Need More Information?
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$16.33
$29.33
$18.95
$18.63
