Ambient Temperature Range: -4 to 212°F (-20 to 100 °C)
Sensing Range: -4 to 212°F (-20 to 100 °C)
Field-of-View: approximately 1:2 (100°)
Minimum Spot Size: 3 mm (.1”)
Spectral Response: 5.5 to 20 µm
Output: K type thermocouple at temperatures close to calibration point (see datasheet for details)
Cable Assembly: 3 feet (0.9 meters) of unshielded, duplex insulated, type K, 24 AWG, PFA jacket rated to 500 o F (260 o C) (Shielded cable also available)
Impedance: ~15 – 40 Kohms, varies depending on model selected
Accuracy (Interchangeability): 1% to factory calibration conditions

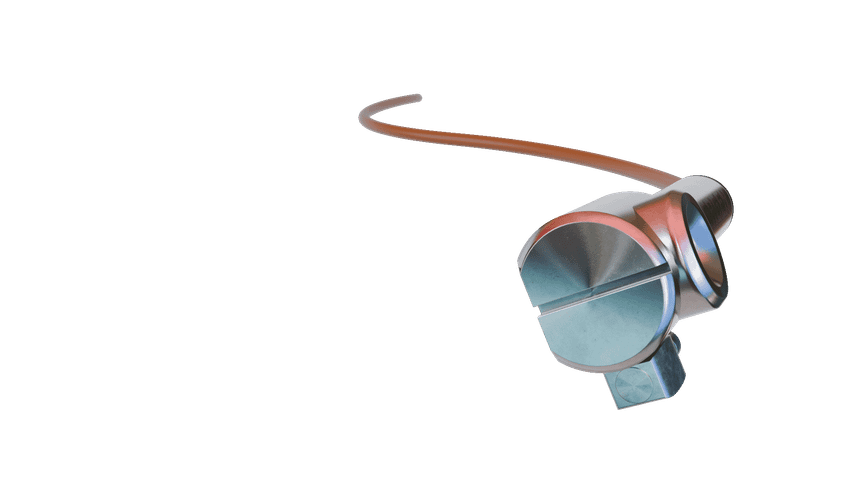

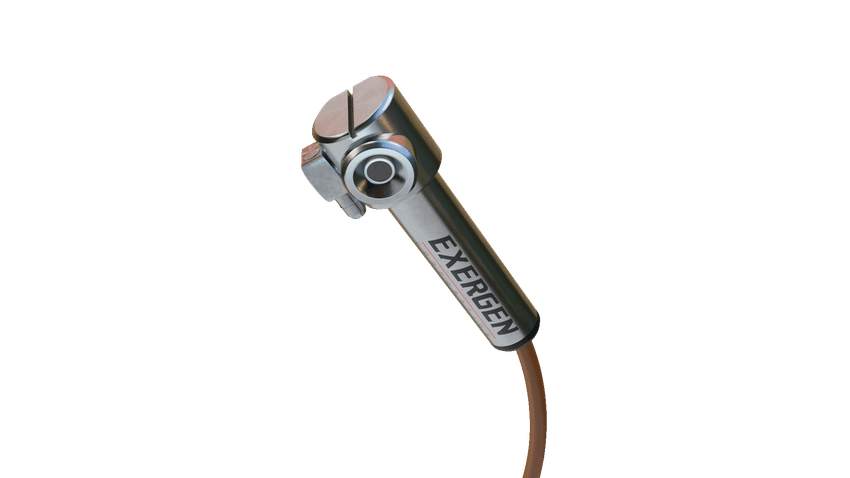

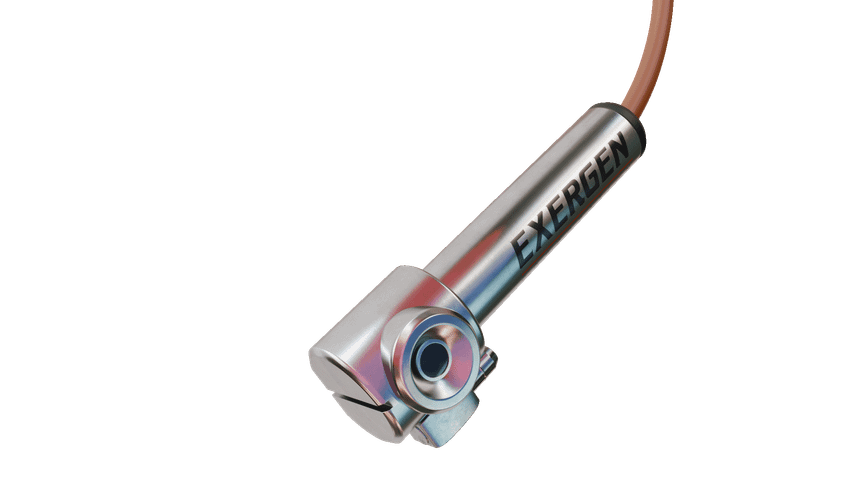

Micro IRt/c, Micro Infrared T/C, K Type, Stainless Steel, 1:2 FOV, Unshielded, T/C Cable, Normal Mount, Precalibrated at 240°F/120°C, Linear from 180-250°F
