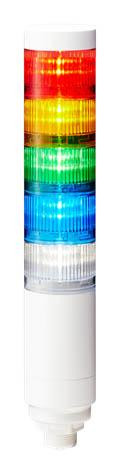

LR6-502WCNW-RYGBC+FB295

The Patlite LR6 Series Ø60mm LED signal tower is designed for machine status indication, andon systems, and process alerts in industrial environments. The series provides a modular, twist-and-lock build that lets LED and sound modules be configured or replaced in the field without tools, and supports both 24V DC and 100-240V AC power. Its IP65-rated, NEMA 4X/13 housing helps the tower hold up to dust and washdown in everyday industrial environments.

Key Features

• IP65 (IEC 60529) rated, NEMA 4X/13 protection for indoor industrial use
• Modular twist-and-lock design for tool-free field configuration of LED and sound modules
• Available in 24V DC and 100-240V AC (100-240V AC offered in off-white body only)
• Four mounting options: direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (off-white body only)
• Optional 7-color multi-color LED module: red, amber, green, blue, light blue, purple, and white
• Enclosed sound module produces up to 88 dB omnidirectional buzzer tone at 1m
• Available with M12 connector, 1/2 inch NPT, or 30mm through-hole mounting variants (M12 connector models support NPN/PNP transistor output for PLC integration; 100-240V AC is NPN only)
• Operating ambient temperature of -20C to +50C
• Part of the Patlite LR signal tower family, available in 40mm (LR4), 50mm (LR5), 60mm (LR6), 70mm (LR7), and 100mm (LR10) diameters
• Compatible with Patlite's WD wireless data acquisition system via the WDT-6LR-Z2 or WDT-6LR-Z2-PRO transmitter and WDR-LE-Z2-PRO receiver, sold separately (WDT-6LR-Z2-PRO also requires the WDB-D80S-PRO base)

Certifications

• UL Listed
• CE marked
• RoHS compliant
• UKCA marked
