The Patlite LR10 Series Φ100mm LED signal tower is designed for high-visibility indoor and outdoor signaling in demanding industrial and food-processing environments. The series supports 24V DC and 100-240V AC power, an M12 connector for fast wiring, and multiple lighting patterns for flexible signaling. Its IP66/IP69K-rated housing helps the tower withstand high-pressure washdown, dust, and outdoor exposure while remaining clearly visible across large facilities.
Key Features
IP66 and IP69K (ISO 20653) rated, NEMA Type 4X/13 (UL50E) for indoor and outdoor use

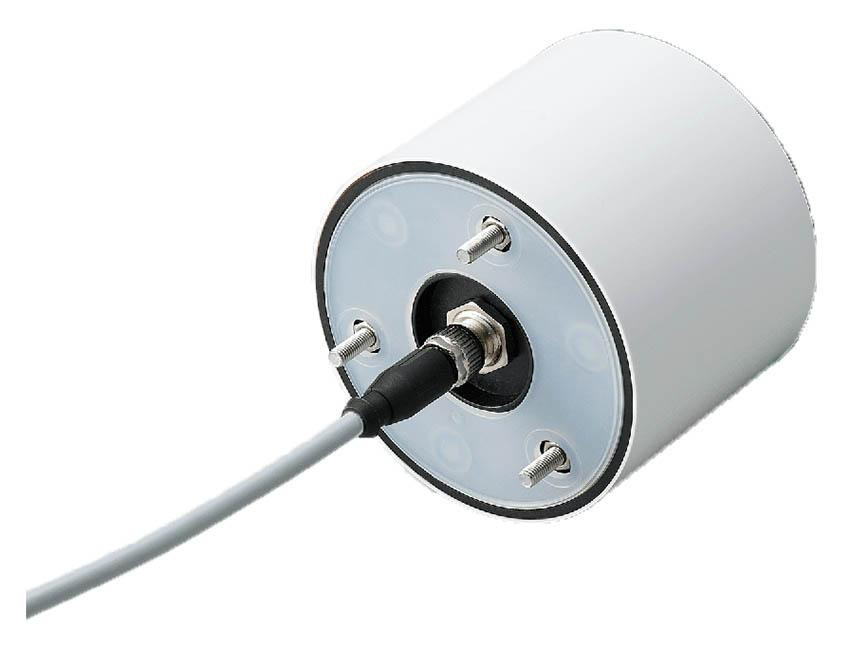

M12 connector standard for fast, tool-free wiring
Multiple lighting patterns: continuous, blinking, flashing, triple flash, and motorless rotation, plus light dimming
Available in 24V DC and 100-240V AC
LED tiers available in red, amber, green, blue, and white, in configurations up to 5 tiers
Enclosed sound module produces up to 92 dB omnidirectional buzzer tone at 1m
Rated storage temperature range of -30C to +60C
Part of the Patlite LR signal tower family, available in 40mm (LR4), 50mm (LR5), 60mm (LR6), 70mm (LR7), and 100mm (LR10) diameters
