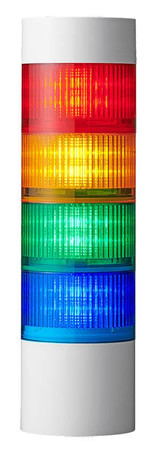

LR10-402WJBW-RYGB

Patlite's 100mm LR10 series is outdoor and IP69K rated, ultra-bright and has all the options you need!

When it comes to noticeable signaling, size is important. The LR10 is visible from far distances thanks to its 100mm diamater!

• 100mm diameter
• IP66 and IP69K rated
• Available from 1 to 5 tiers, 24VDC or 100-240vAC
• Continuous and blinking flashing standard; options include dimming, triple-flash and rotating (motorless rotation!)
• Direct mount with either cable or M12 connector (24VDC only)
• Can be used indoors or outdoors
• Ultra-bright, easy to see from far distances
  • 20 times brighter than conventional products, even outside!
• Ideal applications include outdoor workstations and the food and beverage industry.

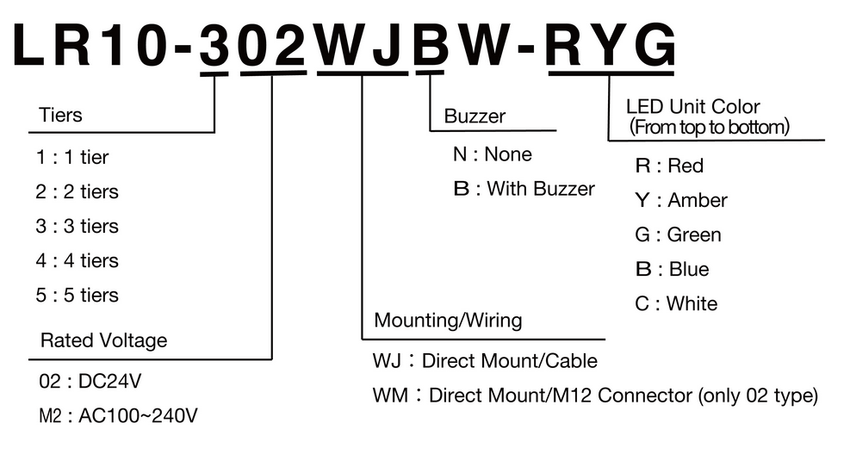

• Can also be ordered modularly with a base unit
  • Base module: LR10-02WJNW or LR10-02WMNW
  • LED modules: LR10-E-x (color)
  • Head cover: LR10-001 (included with assembled models)
  • Buzzer units: LR10-BW (no screws needed) or LR10-BW-2 (screws needed)
  • 2-screw set required when changing the number of tiers (LR10-S-1/2/3/4/5)

Marshall Wolf Automation is your authorized, stocking distibutor for Patlite.

This series was introduced May 2023.

• Ultra-bright LR10 series light tower
• 100mm diameter
• IP66 and IP69K rated
• Available from 1 to 5 tiers, 24VDC or 100-240vAC
• Continuous, blinking, flashing and rotating (motorless rotation!)
• Direct mount with either cable or M12 connector (24VDC only)
• Indoor/outdoor
• Ultra-bright, easy to see from far distances
• This series was introduced May 2023
• Ideal applications include outdoor workstations and the food and beverage industry.
