Patlite
LR6-3M2WJBW-RYG
Stack Light, Andon, Ø60mm, LED, AC100-240V, Flashing/Buzzer, Direct Mount/Cable, Off-White Body, IP65, UL CE
$204.85

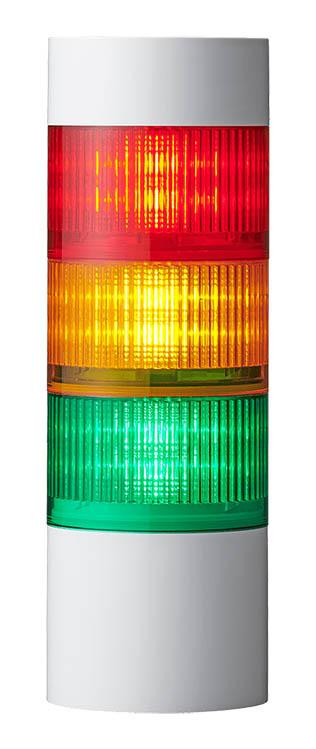

LR10-3M2WJBW-RYG
Alt: LR10 Series
$481.95
Stack Light, Andon, Ø100mm, 3 Tier, 100-240VAC, Direct Mount, Flashing/Buzzer, Red, Amber, Green LED, IP66/IP69K, Indoor/Outdoor, LR10 Series
- Weight:
- 3.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Patlite LR10 Series Φ100mm LED signal tower is designed for high-visibility indoor and outdoor signaling in demanding industrial and food-processing environments. The series supports 24V DC and 100-240V AC power, an M12 connector for fast wiring, and multiple lighting patterns for flexible signaling. Its IP66/IP69K-rated housing helps the tower withstand high-pressure washdown, dust, and outdoor exposure while remaining clearly visible across large facilities.
Key Features
- IP66 and IP69K (ISO 20653) rated, NEMA Type 4X/13 (UL50E) for indoor and outdoor use
- M12 connector standard for fast, tool-free wiring
- Multiple lighting patterns: continuous, blinking, flashing, triple flash, and motorless rotation, plus light dimming
- Available in 24V DC and 100-240V AC
- LED tiers available in red, amber, green, blue, and white, in configurations up to 5 tiers
- Enclosed sound module produces up to 92 dB omnidirectional buzzer tone at 1m
- Rated storage temperature range of -30C to +60C
- Part of the Patlite LR signal tower family, available in 40mm (LR4), 50mm (LR5), 60mm (LR6), 70mm (LR7), and 100mm (LR10) diameters
