LR10-102WJNW-R
Patlite

LR10-102WJNW-R

Alt: LR10 Series

$204.75

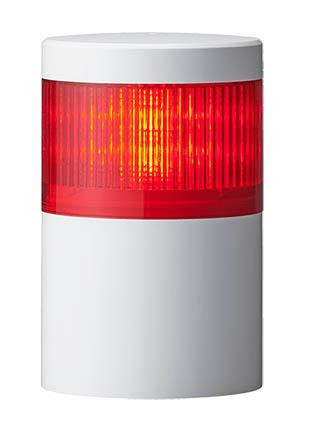

Stack Light, Andon, Ø100mm, 1 Tier, 24VDC, Direct Mount, without Buzzer, Red LED, IP66/IP69K, Indoor/Outdoor, LR10 Series

Weight:
2.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Rated IP66 and IP69K, ideal for outdoor or harsh environments!
Description

The Patlite LR10 Series Φ100mm LED signal tower is designed for high-visibility indoor and outdoor signaling in demanding industrial and food-processing environments. The series supports 24V DC and 100-240V AC power, an M12 connector for fast wiring, and multiple lighting patterns for flexible signaling. Its IP66/IP69K-rated housing helps the tower withstand high-pressure washdown, dust, and outdoor exposure while remaining clearly visible across large facilities.

Key Features

  • IP66 and IP69K (ISO 20653) rated, NEMA Type 4X/13 (UL50E) for indoor and outdoor use
  • M12 connector standard for fast, tool-free wiring
  • Multiple lighting patterns: continuous, blinking, flashing, triple flash, and motorless rotation, plus light dimming
  • Available in 24V DC and 100-240V AC
  • LED tiers available in red, amber, green, blue, and white, in configurations up to 5 tiers
  • Enclosed sound module produces up to 92 dB omnidirectional buzzer tone at 1m
  • Rated storage temperature range of -30C to +60C
  • Part of the Patlite LR signal tower family, available in 40mm (LR4), 50mm (LR5), 60mm (LR6), 70mm (LR7), and 100mm (LR10) diameters
