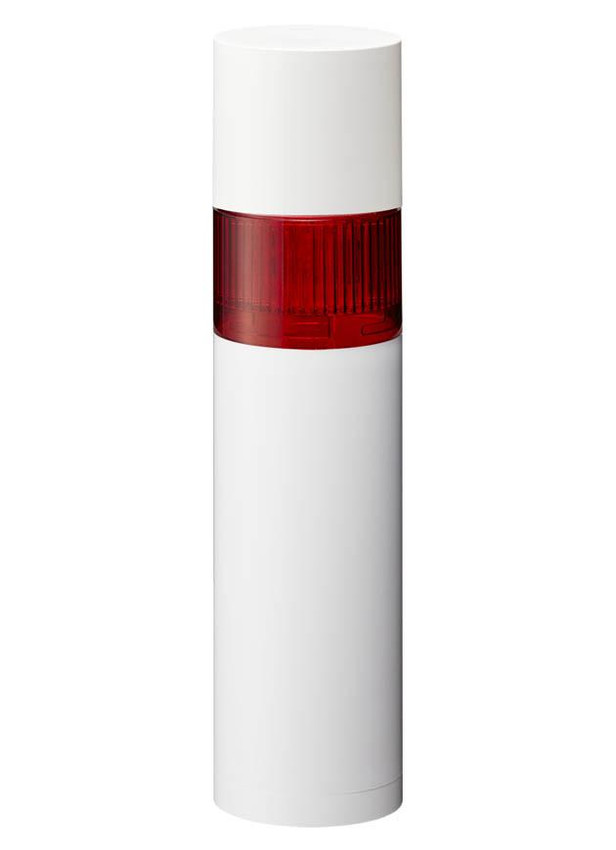

The Patlite LR6 Series Ø60mm LED signal tower is designed for machine status indication, andon systems, and process alerts in industrial environments. The series provides a modular, twist-and-lock build that lets LED and sound modules be configured or replaced in the field without tools, and supports both 24V DC and 100-240V AC power. Its IP65-rated, NEMA 4X/13 housing helps the tower hold up to dust and washdown in everyday industrial environments.
Key Features
IP65 (IEC 60529) rated, NEMA 4X/13 protection for indoor industrial use
Modular twist-and-lock design for tool-free field configuration of LED and sound modules
Available in 24V DC and 100-240V AC (100-240V AC offered in off-white body only)
Four mounting options: direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (off-white body only)
Optional 7-color multi-color LED module: red, amber, green, blue, light blue, purple, and white
Enclosed sound module produces up to 88 dB omnidirectional buzzer tone at 1m
Available with M12 connector, 1/2 inch NPT, or 30mm through-hole mounting variants (M12 connector models support NPN/PNP transistor output for PLC integration; 100-240V AC is NPN only)
Operating ambient temperature of -20C to +50C
Part of the Patlite LR signal tower family, available in 40mm (LR4), 50mm (LR5), 60mm (LR6), 70mm (LR7), and 100mm (LR10) diameters
Compatible with Patlite's WD wireless data acquisition system via the WDT-6LR-Z2 or WDT-6LR-Z2-PRO transmitter and WDR-LE-Z2-PRO receiver, sold separately (WDT-6LR-Z2-PRO also requires the WDB-D80S-PRO base)
