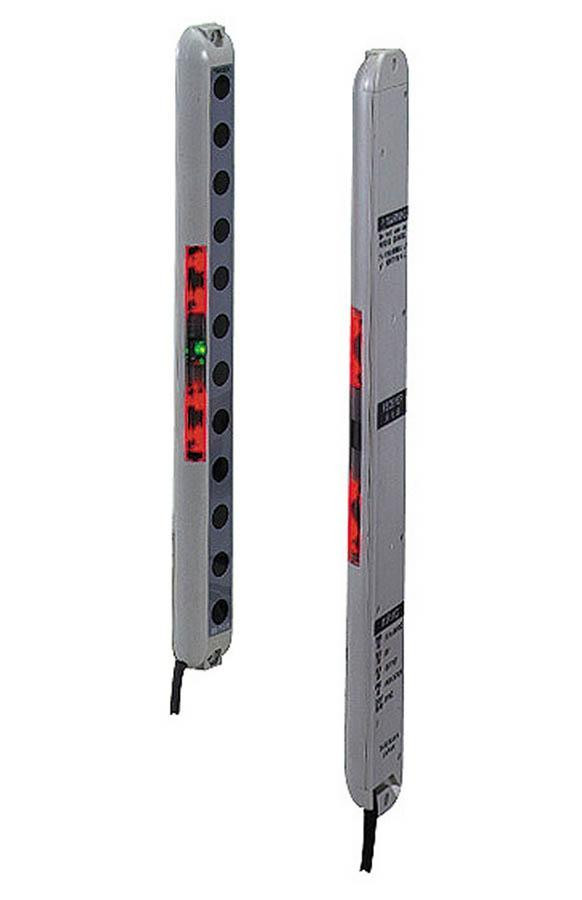

ESN-T16

Light Curtain Sensor, Through Beam, NPN

ESN-T16

Alt: ESN Series

$500.62

Light Curtain, Thru-Beam, NPN, Red LED, 5m Range, Ø30

SKU:: ESN-T16
Minimum Purchase:: 1 unit

Description
Accessories

Light Curtain Sensor, Through Beam, NPN, Red LED, 5000mm, 30dia,

Features Include:

Master/Slave operation for installation of up to 2 adjacent units
Auto Sensitivity Compensation (from set point) to offset lens soiling
Capable of detecting objects 30mm or larger (opaque)
Terminal board connection ensures open space at writing
Detection Distance: 5m or less
Detection Method: Through Beam
Detection Object: Opaque dia.30mm or more
Beam Interval: 20mm
Number of Light Axes: 16
Detecting Width: 300mm
Power Supply: 12 - 24V DC ±10‚àö√Æ¬¨‚à´‚àö√± / Ripple 10% or less
Current Consumption: 120mA or less
Output Mode: Open collector output Rating: Sink current 100mA (30VDC) or less
Operation Mode: Activated when light beams of all axes are received (deactivated when light beam of any axis is blocked)
Response Time: 7ms or less
Light Source: Infrared LED (850nm)
Light Receiving Element: Photo IC
Material: Case: ABS / Indicator window: acrylic
Connection: Attached Cable (Outer dimension: dia.4.3mm) Cable: 3 m, Cable: With five 0.2 mm 2 5 cores, gray (transmitter) or black (receiver) covering
Auxiliary Functions: Automatic sensitivity compensation, Anti Mutual Sensitivity feature for adjacent installation, Output short circuit protection

Indicator:

Transmitter - Green LED: Power Indicator | Red LED: Operation Indicator
Receiver: Green LED: Stable light reception indicator | Red LED: Operation Indicator

Environmental Factors:

Ambient Light: 10,000 lx or less
Ambient Temperature: -10 - +55°C (non-freezing)
Ambient Humidity: 35 - 85%RH (non-condensing)
Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
Shock: 500 m/s2 / 3 times each in 3 directions
Dielectric Withstanding: 1000VAC for 1 minute / between entire live part and case
Insulation Resistance: 500 VDC, 20 MΩor higher
