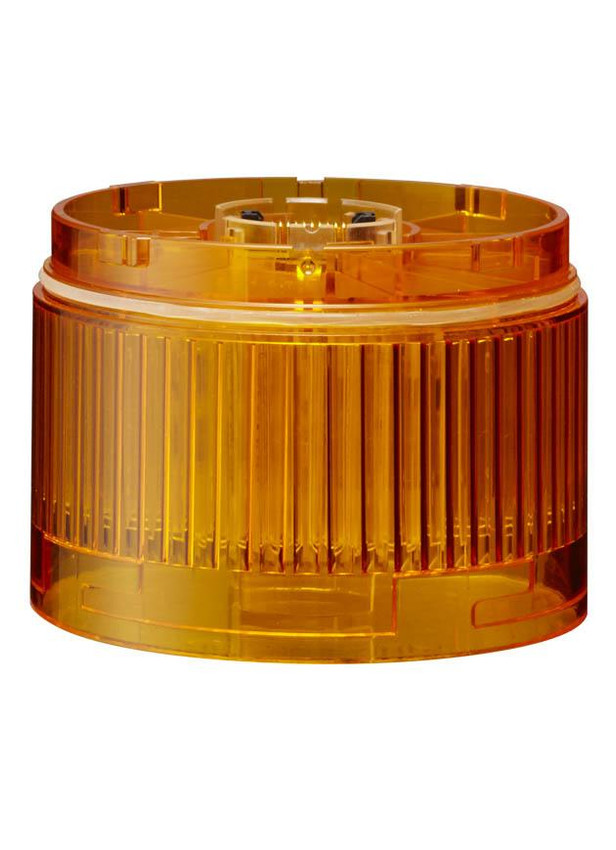

LR7-E-Y

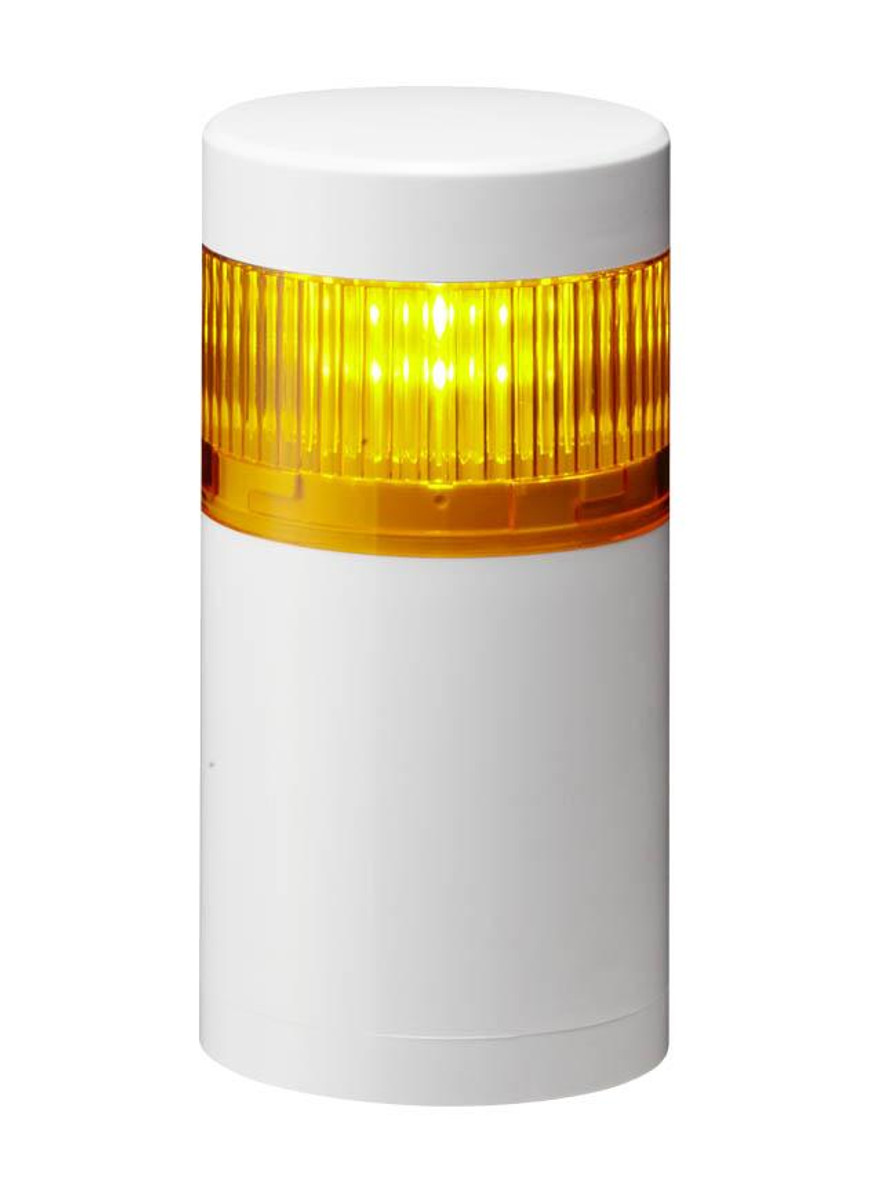

The Patlite LR7 Series Ø70mm LED signal tower is the largest-diameter model in the LR line, designed for high-visibility signaling across large production floors, warehouses, and sheltered outdoor areas. The series shares the same modular, twist-and-lock build as the rest of the LR line, letting LED and sound modules be configured or replaced in the field without tools, and it is rated 24V DC. Its IP65-rated housing and the loudest buzzer output in the LR series help the tower stay visible and audible in demanding industrial environments.

Key Features

• IP65 (IEC 60529) rated for indoor industrial use
• Modular twist-and-lock design for tool-free field configuration of LED and sound modules
• Rated 24V DC
• Four mounting options: direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (off-white body only)
• Available in red, amber, green, blue, and white LED tiers, in single or multi-tier configurations
• Enclosed sound module produces up to 90 dB omnidirectional buzzer tone at 1m, the loudest in the LR series
• Operating ambient temperature of -20C to +50C
• Part of the Patlite LR signal tower family, available in 40mm (LR4), 50mm (LR5), 60mm (LR6), 70mm (LR7), and 100mm (LR10) diameters

Certifications

• UL Listed
• CE marked
• RoHS compliant
• UKCA marked
