300-100-51
Werma

300-100-51

Alt: 300.100.51, 30010051

$636.78

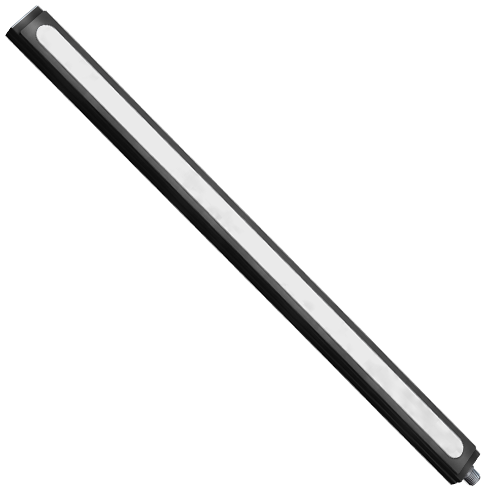

LED Light Strip, 1200mm, 7-Color RGB LED, 24VDC, Clip Mount, M12 5-Pin Connector, Aluminum/PC/Stainless Steel Housing, -30°C to +50°C, IP54/IP65

Weight:
2.27 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Flush-mount LED status lighting that blends into your machine's housing design
Description

The WERMA LineLIGHT Fusion series is a fully integrated LED signaling module designed to blend seamlessly into the surface of a machine or system housing. Rather than mounting as a separate add-on beacon, the flush light module becomes part of the machine's own design while displaying operating status clearly to nearby operators.

Key Features

  • 7-color RGB LED illumination (red, orange, green, white, blue, violet, turquoise) selectable for different machine states
  • Homogeneous, full-surface illumination along the length of the module
  • Flush, gap-free housing design that minimizes dirt-collecting edges and openings
  • Aluminum, polycarbonate, and stainless steel construction
  • Screw-in clip mounting for built-in panel installation
  • Pre-assembled M12 5-pin connector for simplified wiring
  • Operates on 24VDC
  • Operating temperature range of -30°C to +50°C
  • Rated IP54/IP65 for use in demanding industrial environments
  • Configurable in 50mm increments from 100mm to 1000mm, and 100mm increments from 1000mm to 1500mm

Certifications

  • CE
  • RoHS
  • WEEE
  • UKCA
