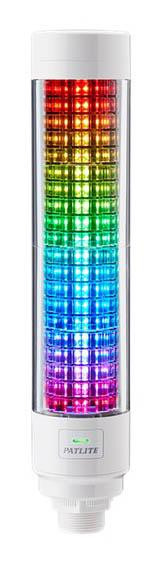

LB6-20ILWCNW

Looking for an easy to use light tower that has all the features you need? Here it is! The Patlite LB6 consists of just TWO model numbers:

• LB6-20ILWCBW - with buzzer
• LB6-20ILWCNW - without buzzer

Both models feature:

• Programmable multi-color, 21 colors, 10 patterns
• 20 segement IO-Link control
• Direct mount/M12 connector - wire this light tower with one IO-Link cable
• Off-white body
• 24VDC
• IP65 when upright
• Buzzer option is 88dB at 1m and has 9 sound types, including 'OFF'
• Dimming 0 to 100% in increments of 10%
• 3 operating modes; simple, level meter and animatin (see below for more details)
• Need the buzzer after you bought? You can easily add it with LB6-BW accessory
• Optional wall mount bracket available soon; SZK-005W

Additional IO-Link products from Patlite include NE-IL signal beacons and LR6-IL signal towers.

Simple Mode:

• Visualization of equipment status; divide an area into 1 to 5 tiers and set each tiers colors and flashing patterns
• Indications by severity levels - green is normal, amber is warning, red is warning

Level Meter Mode:

• Visualize tank levels and temperature - preset lighting patterns based on tank level, display machine status changes

Animation Mode:

• Visualize takt time of a manufacturing process - see elapsed time by changing preset colors from bottom to top or top to bottom
  • What is takt time? Learn more here!
