072666

072666

Alt: 72666, WKT8/4RW

$282.33

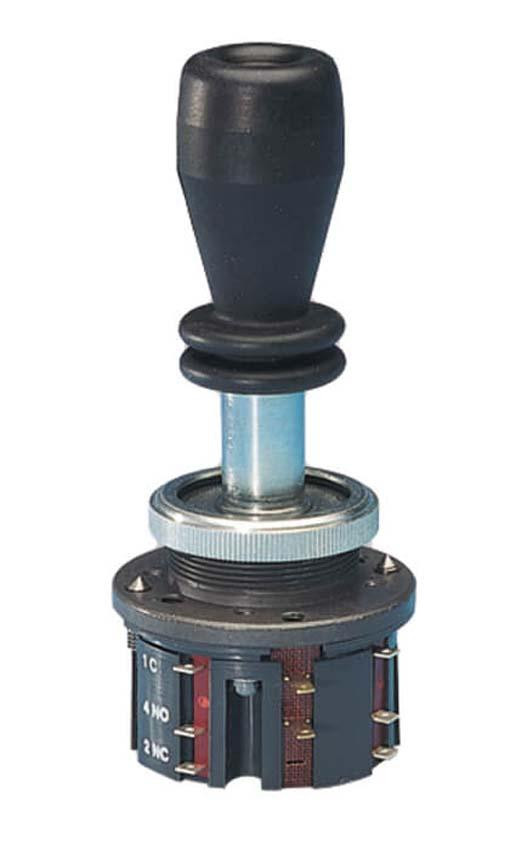

Joystick, WKT8/4RW

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Series Features Include:

  • Front panel installation according to IEC 947-5-1 D30
  • Pushbutton with 8 actuating directions
  • One changeover contact with tab connector 2.8 x 0.5 IEC 760 for two actuating directions
  • Bellows
  • All-round actuation
  • Actuating side with/without bellow: IP 65
  • Switching current (at 24V): min. 12 mA
  • Switching voltage: min. 10 V
  • Connection: Tab connector 2.8x0.5 IEC760
  • Weight Approx.: 0.2 kg
  • Mounting type: IEC 947-5-1 D30
  • Actuating directions: 8
  • Number of monitoring contacts: 4
  • Switching principle: Changeover contact C, IEC 947-5-1
  • Rated impulse withstand voltage Uimp: 2.5 kV
  • Rated insulation voltage Ui: 250 V
  • Utilization category AC 15: 230V 4A
  • Utilization category DC 13: 24V 2A
  • Contact: Silver alloy
  • Material: Housing: thermoplastic/aluminum, Switching lever: stainless steel, Bellows: elastomer, black

Technical Information:
