000237
Alt: 237, WKT13D
$245.18

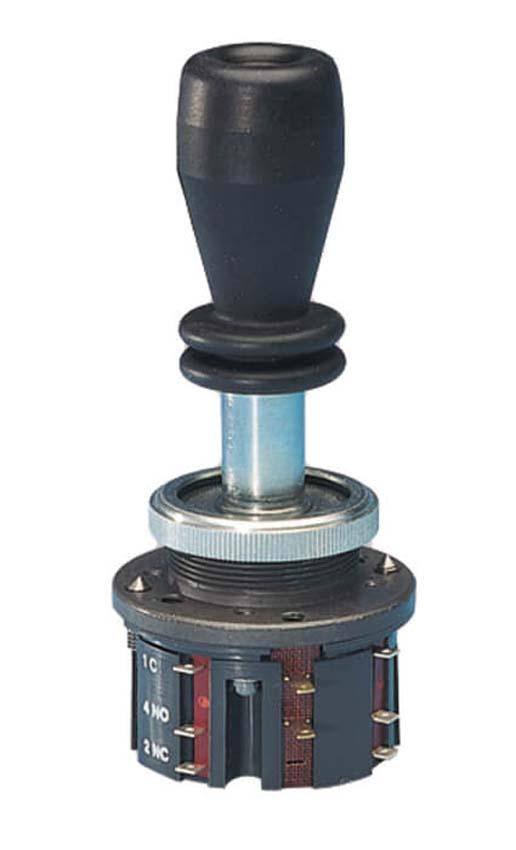

Joystick, Front Panel Installation According to IEC 947-5-1 D30, Pushbutton with Actuating Directions 1+3, One Changeover Contact with Tab Connector 2.8 x 0.5 IEC 760 for Each Actuating Direction, Pushbutton in Handle
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Front panel installation according to IEC 947-5-1 D30
- Pushbutton with actuating directions 1+3
- One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
- Pushbutton in handle
- Actuating side with/without bellow: IP 54
- Switching current (at 24V): min. 12 mA
- Switching voltage: min. 10 V
- Connection: Tab connector 2.8x0.5 IEC760
- Weight Approx.: 0.2 kg
- Mounting type: IEC 947-5-1 D30
- Actuating force: 3 N
- Number of monitoring contacts: 2
- Switching principle: Changeover contact C, IEC 947-5-1
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Utilization category AC 15: 230V 4A
- Utilization category DC 13: 24V 2A
- Switching voltage: DC 10 - 50 V
- Contact: Silver alloy
- Material: Housing: thermoplastic/aluminum, Switching lever: stainless steel, Bellows: elastomer, black
Technical Information:
