000225
Alt: 225, WKT1234D
$306.23

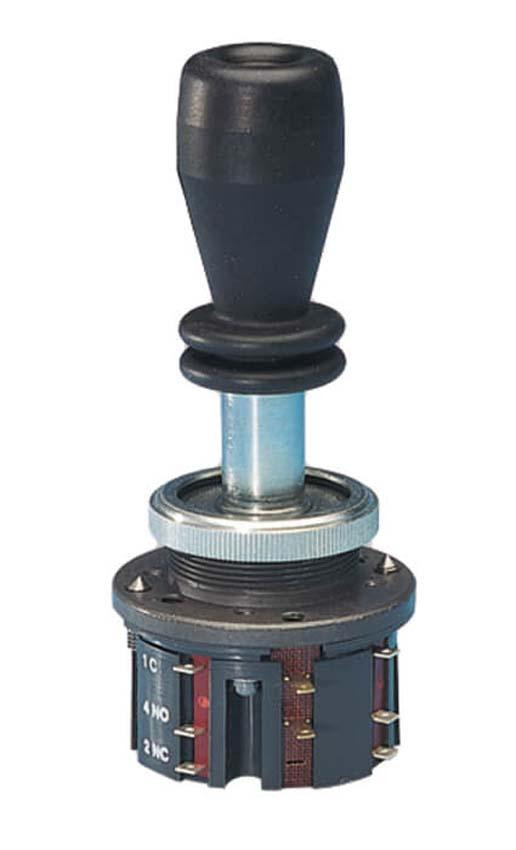

Joystick, Front Panel Installation According to IEC 947-5-1 D30, Pushbutton in Handle with 1-4 Actuating Directions, One Changeover Contact with Tab Connector 2.8 x 0.5 IEC 760 for Each Actuating Direction
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Front panel installation according to IEC 947-5-1 D30
- One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
- Locking in central position
- Actuating side with/without bellow: IP 54
- Weight Approx.: 0.17 kg
- Connection: Tab connector 2.8x0.5 IEC760
- Number of monitoring contacts: 4
- Actuating directions: 4
- Mounting method: IEC 947-5-1 D30
- Switching principle: changeover contact C IEC 947-5-1
- Utilization category AC 15: 230V 4A
- Utilization category DC 13: 24V 2A
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Switching voltage min.:10 V
- Switching current (at 24V): min.12 mA
- Material: Housing: thermoplastic/aluminum, Switching lever: stainless steel, Bellows: elastomer black
Technical Information:
