022236

Series Features Include:

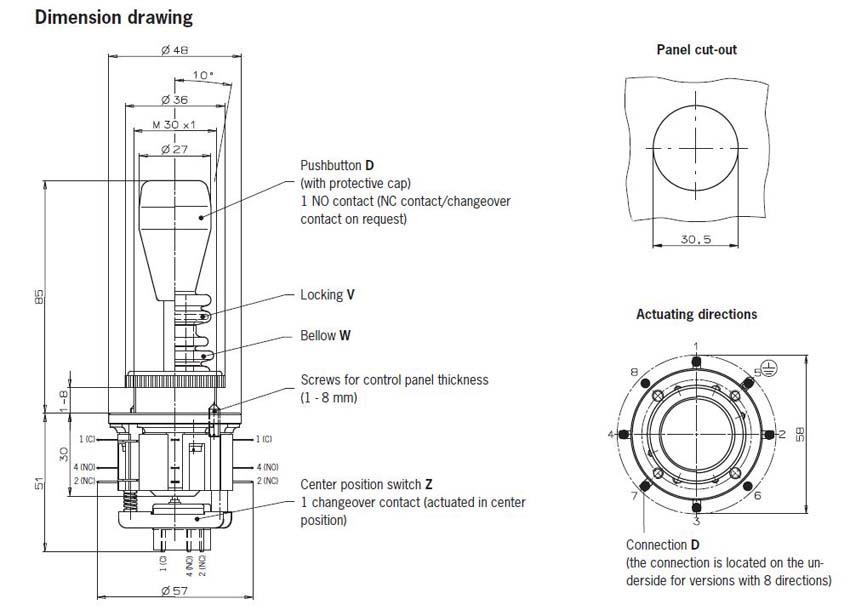

• Front panel installation according to IEC 947-5-1 D30
• 1 to 8 actuating directions with spring return switches or combined
• One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
• Center position switch
• Pushbutton in handle
• Housing material: Reinforced thermoplastic/aluminum
• Switching lever: material Stainless steel
• Actuating side with/without bellow: IP 65/IP 54
• Weight Approx.: 0.2 kg
• Connection: Tab connector 2.8 x 0.5 IEC 760
• Switching contact: Changeover contact C IEC 947-5-1
• Switching principle: Snap-action contact element, design ES 584
• Utilization category AC 15: 230 V/2 A
• Utilization category DC 13: 24 V/1 A

Technical Information:

• Euchner Joystick Switches Catalog
