Description

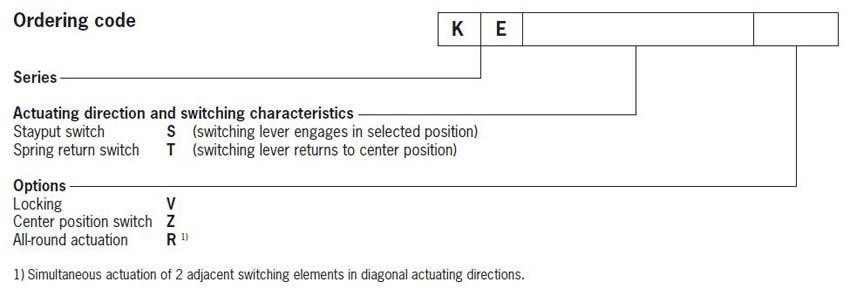

Series Features Include:
- Front panel installation according to IEC 947-5-1 D22
- 1 to 8 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined
- One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
- Center-position switch
- Housing material: Duroplast Thermoplastic, Bellows: elastomer, black
- Switching lever material: Stainless steel
- Contact material Silver alloy
- Weight: Approx. 0.1kg
- Degree of protection acc. to IEC 529 (Actuating side with/without bellow): IP 65
- Actuating directions: 4
- Number of monitoring contacts: 4
- Connection: Tab connector 2.8x0.5 IEC760
- Mounting type: IEC 947-5-1 D22
- Switching principle: Changeover contact C, IEC 947-5-1
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Utilization category AC-15: 230V 4A
- Utilization category DC-13: 24V 2A
- Switching current, (at 24V): min. 12 mA, min. 10 V
Series Features Include:
- Front panel installation according to IEC 947-5-1 D22
- 1 to 8 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined
- One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
- Center-position switch
- Housing material: Duroplast Thermoplastic, Bellows: elastomer, black
- Switching lever material: Stainless steel
- Contact material Silver alloy
- Weight: Approx. 0.1kg
- Degree of protection acc. to IEC 529 (Actuating side with/without bellow): IP 65
- Max. number of actuating directions: 8
- All-round actuation R Actuation of one switching element (vertically or horizontally) or two adjacent switching elements (diagonally) at the same time
- Max. number of switching elements: 4
- Connection: Tab connector 2.8x0.5 IEC760
- Mounting type: IEC 947-5-1 D22
- Switching principle: Snap-action contact element, design ES 587
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Utilization category AC-15: 230V 5A
- Utilization category DC-13: 24V 3A
- Switching current, min. at 24 V: 10mA
- Switching voltage, min.: 12 V
