IR18.P15S-N45.NO1Z.7BO
Baumer

IR18.P15S-N45.NO1Z.7BO

Alt: 11148820, This item Replaced 10166130 | IFRM 18N13G3/S14L

$150.09

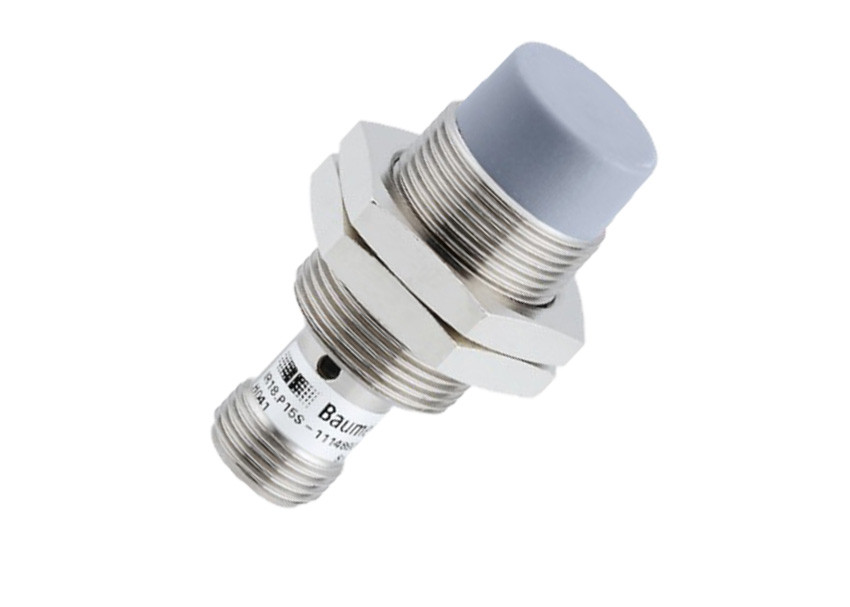

IR18.P15S-N45.NO1Z.7BO Inductive Proximity Sensor, Non-Flush, 15mm. LED

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
IR18.P15S-N45.NO1Z.7BO Inductive Proximity Sensor, Non-Flush, 15MM. LED

Features Include:

  • Mounting Type: Non-Flush
  • Special Type: Enhanced distance (GammaProx)
  • Nominal Sensing Distance Sn: 15 mm
  • Voltage Supply Range: 6 - 36 VDC
  • Current Consumption Max. (no load): 10 mA
  • Output Current: < 100 mA
  • Hysteresis: 3 - 20 % of Sr
  • Switching Frequency: < 400 kHz
  • Output Circuit: NPN make function (NO)
  • Connection: Connector M8
  • Operating Temperature: 0 - +65 °C
  • Protection Rating: IP 67

Temperature Drift:

  • - 5 % / + 10 % (+10 - +60 °C)
  • - 5 % / + 15 % (0 - +65 °C)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

IR18.P15S-N45.PO1Z.7BO

Inductive Proximity Sensor, M18, Non-Flush, 6-36VDC, 15mm Range Sn, PNP, NO, Enhanced Distance (GammaProx), M12 Connector, 18 x 45mm Cylindrical Threaded Nickel Plated Brass Housing, 0 to +65°C, IP67

$150.09

Baumer

IR18.P15S-N45.PC1Z.7BO

Inductive Proximity Sensor, M18, Non-Flush, 6-36VDC, 15mm Range Sn, PNP, NC, Enhanced Distance (GammaProx), M12 Connector, 18 x 45mm Cylindrical Threaded Nickel Plated Brass Housing, 0 to +65°C, IP67

$150.09

Baumer

IR18.P15S-N45.NC1Z.7BO

Inductive Proximity Sensor, M18, Non-Flush, 6-36VDC, 15mm Range Sn, NPN, NC, Enhanced Distance (GammaProx), M12 Connector, 18 x 45mm Cylindrical Threaded Nickel Plated Brass Housing, 0 to +65°C, IP67

$150.09

Baumer

IR18.P15S-N60.NO1Z.7BO

Inductive Proximity Sensor, M18, Non-Flush, 6-36VDC, 15mm Range Sn, NPN, NO, Enhanced Distance (GammaProx), M12 Connector, 18 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, 0 to +65°C, IP67

$131.20

Baumer

IR18.P15S-N50.NO1Z.7BCV

Inductive Proximity Sensor, M18, Non-Flush, 6-36VDC, 15mm Range Sn, NPN, NO, Enhanced Distance (GammaProx), 2m Cable, 18 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, 0 to +65°C, IP67

$150.09
