Baumer
IFRM 08P37A4/KS35L
Inductive Proximity Sensor, Ø8x50mm, Flush, 10-30VDC, 2mm Range, PNP NC, M8 Flylead, IP67
$179.69
IFRM 08P37A4/S35L
Alt: 10156225
$136.20
Inductive Proximity Sensor, Ø8x56mm, Flush, 10-30VDC, 2mm Range, PNP NC, M8 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

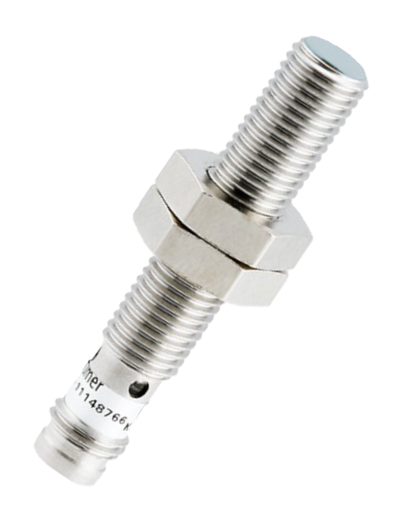

Inductive Proximity Sensor, Ø8x56mm, Flush, 10-30VDC, 2mm Range, PNP NC, M8 Connector, IP67
Features Include:
- Nominal Sensing Distance Sn: 2 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Switching Frequency:< 5 kHz
- Output Indicator: 3 port LED red
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Stainless Steel
Need More Information?
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFRM 08P37A4/L

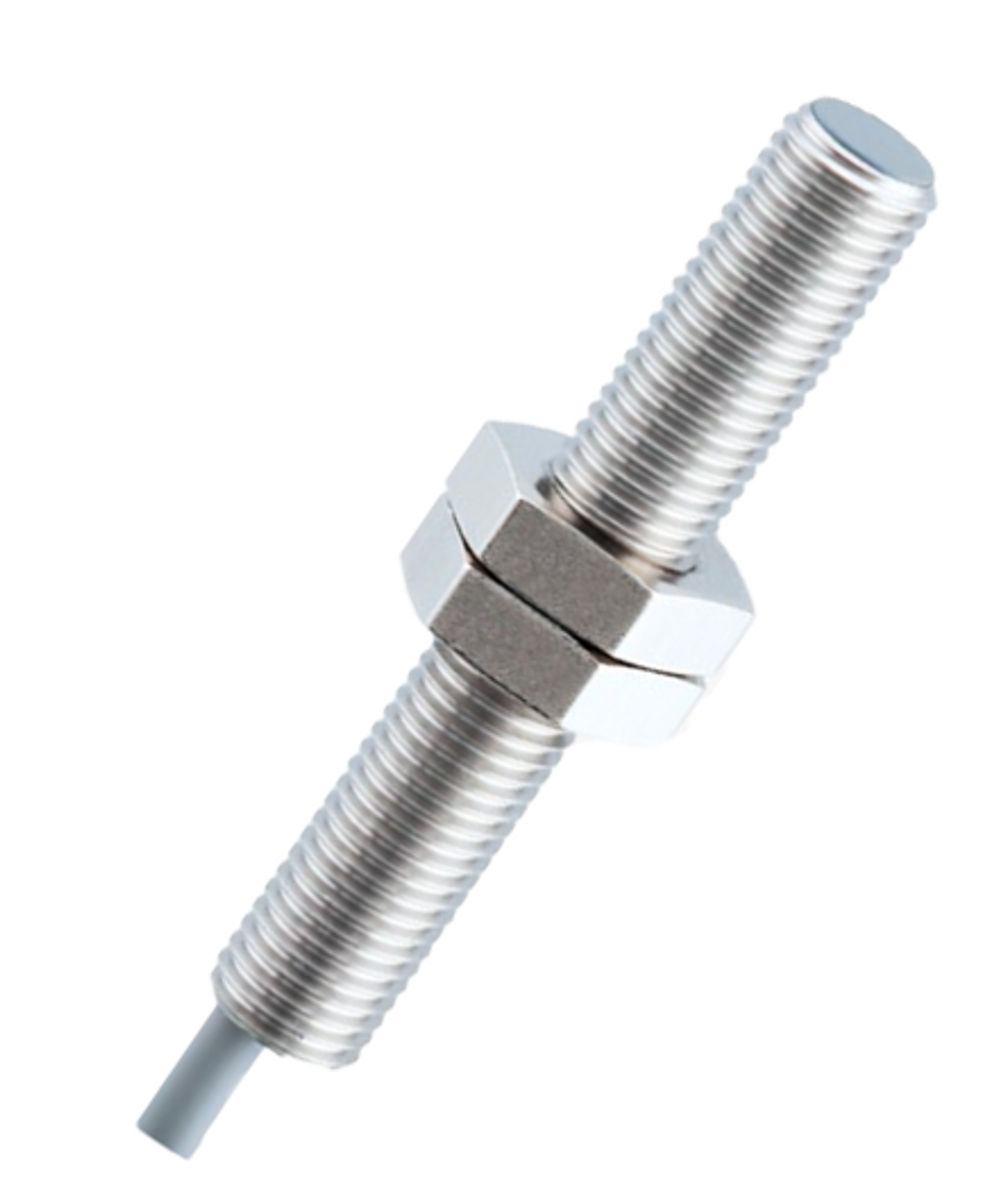

Inductive Proximity Sensor, Ø8x50mm, Flush, 10-30VDC, 2mm Range, PNP NC, 2m Cable, IP67
$156.09
Baumer
IFRM 05P17A1/S35L
Inductive Proximity Sensor, Ø5x45mm, Flush, 10-30VDC, 1.6mm Range, PNP NO, M8 Connector, IP67
$154.00
Baumer
IFRM 06P37A5/S35L
Inductive Proximity Sensor, Ø6.5x28mm, Flush, 10-30VDC, 2mm Range, PNP NC, M8 Connector, IP67
$143.89
Baumer
IFRM 06N37A4/S35L
Inductive Proximity Sensor, Ø6.5x56mm, Flush, 10-30VDC, 2mm Range, NPN NC, M8 Connector, IP67
$134.29
