Baumer
IFRM 08N17A4/S35L
Inductive Proximity Sensor, Ø8x56mm, Flush, 10-30VDC, 2mm Range, NPN NO, M8 Connector, IP67
$136.20
IFRM 08N17A4/L
Alt: 10160255
$156.09
Inductive Proximity Sensor, Ø8x50mm, Flush, 10-30VDC, 2mm Range, NPN NO, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

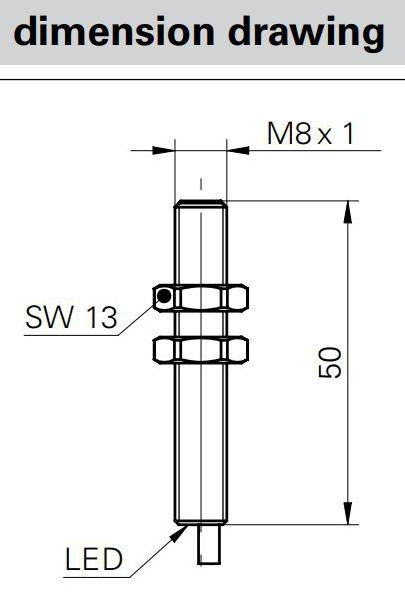

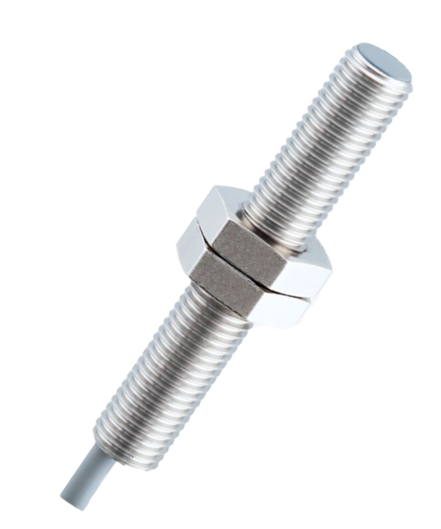

Inductive Proximity Sensor, Ø8x50mm, Flush, 10-30VDC, 2mm Range, NPN NO, 2m Cable, IP67
Features Include:
- Nominal Sensing Distance Sn: 2 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 5 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Stainless Steel
