Baumer
IFRM 08N37A1/KS35L
Inductive Proximity Sensor, Ø8x40mm, Flush, 10-30VDC, 2mm Range, NPN NC, M8 Flylead, IP67
$169.69
IFRM 08N37A1/L
Alt: 10142612
$156.49
Inductive Proximity Sensor, Ø8x40mm, Flush, 10-30VDC, 2mm Range, NPN NC, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

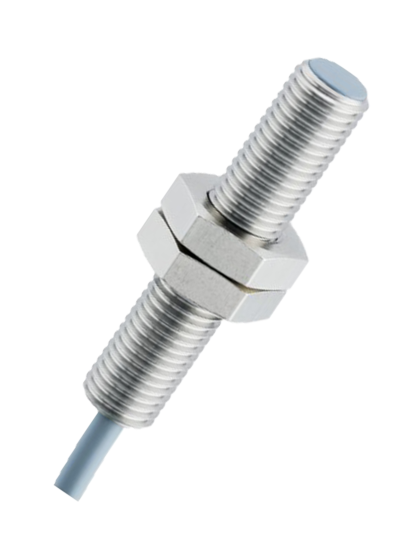

Inductive Proximity Sensor, Ø8x40mm, Flush, 10-30VDC, 2mm Range, NPN NC, 2m Cable, IP67
Features Include:
- Nominal Sensing Distance Sn: 2 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 5 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Stainless Steel
