Baumer
IFRM 06P37A4/KS35L
Inductive Proximity Sensor, Ø6.5x50mm, Flush, 10-30VDC, 2mm Range, PNP NC, M8 Flylead, IP67
$179.69
IFRM 06P37A4/S35L
Alt: 10156223
$134.29

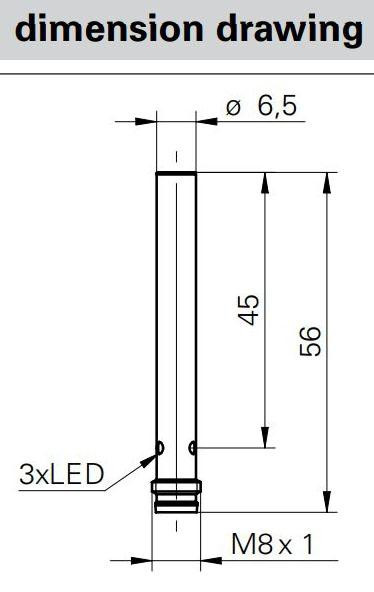

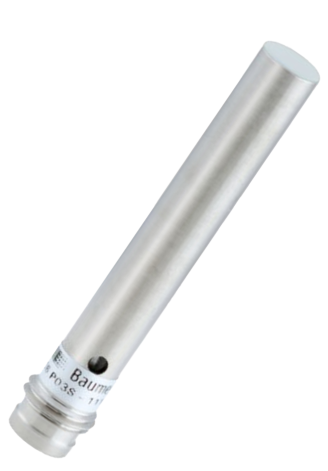

Inductive Proximity Sensor, Ø6.5x56mm, Flush, 10-30VDC, 2mm Range, PNP NC, M8 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø6.5x56mm, Flush, 10-30VDC, 2mm Range, PNP NC, M8 Connector, IP67
Features Include:
- Nominal Sensing Distance Sn: 2 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: 3 port LED red
- Switching Frequency:< 5 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Stainless Steel
Need More Information?
