Baumer
IFRM 05N37A3/S05L
Inductive Proximity Sensor, Ø5x24mm, Flush, 10-30VDC, 1.6mm Range, NPN NC, M5 Connector, IP67
$179.69
IFRM 05N37A3/S35L
Alt: 11082469
$179.69
Inductive Proximity Sensor, Ø5x36mm, Flush, 10-30VDC, 1.6mm Range, NPN NC, M8 Connector, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

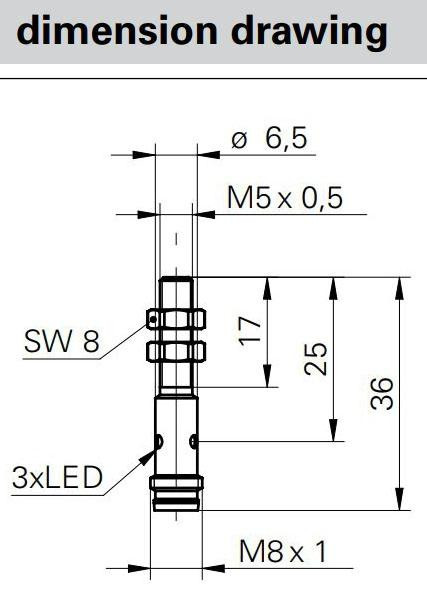

Inductive Proximity Sensor, Ø5x36mm, Flush, 10-30VDC, 1.6mm Range, NPN NC, M8 Connector, IP67
Features Include:
- Nominal Sensing Distance Sn: 1.6 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: 3 port LED red
- Switching Frequency:< 3 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): LCP
- Housing Material: Stainless Steel
