IFRM 05P37A1/PL
Alt: 11082475
$164.00

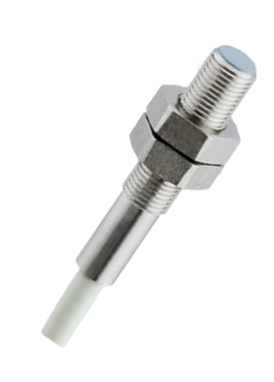

Inductive Proximity Sensor, Ø5x25mm, Flush, 10-30VDC, 1.6mm Range, PNP NC, 2m Cable, IP67
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, √ò5x25mm, Flush, 10-30VDC, 1.6mm Range, PNP NC, 2m Cable, IP67
Features Include:
- Nominal Sensing Distance Sn: 1.6 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 3 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): LCP
- Housing Material: Stainless Steel
