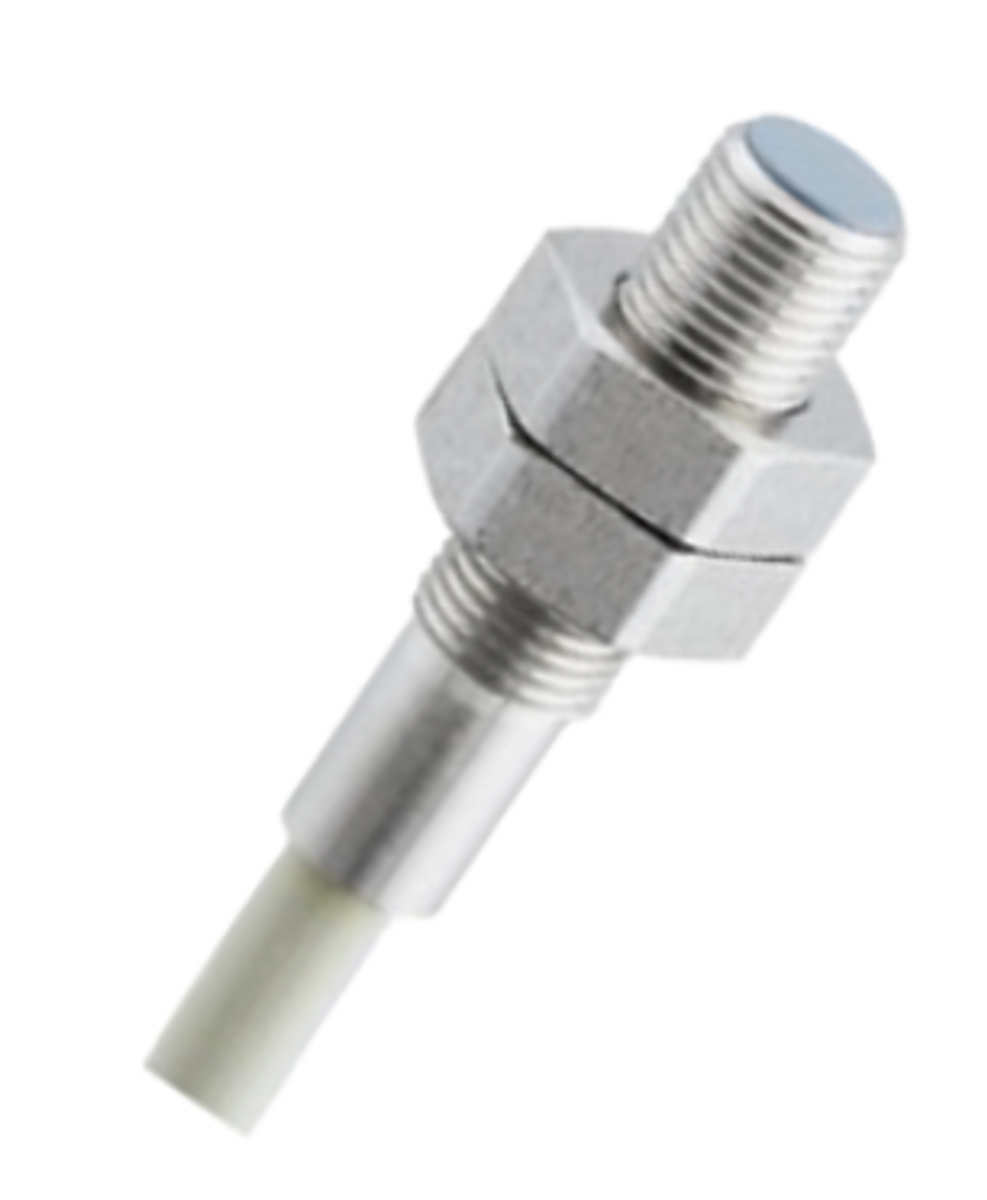

Baumer
IFRM 05P15A3/L
Inductive Proximity Sensor, Subminiature, M5, Flush, 6-30VDC, 1mm Range Sn, PNP, NO, 2m Cable, 5 x 20mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
$198.80
IFRM 05P15A3/KS35PL
Alt: 10160290
$221.29
Inductive Proximity Sensor, Ø5x20mm, Flush, 10-30VDC, 1mm Range, PNP NO, M8 Flylead, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø5x20mm, Flush, 10-30VDC, 1mm Range, PNP NO, M8 Flylead, IP67
Features Include:
- Nominal Sensing Distance Sn: 1 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 5 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): LCP
- Housing Material: Stainless Steel
Need More Information?
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFRM 05P15A3/S35L
Inductive Proximity Sensor, Subminiature, M5, Flush, 6-30VDC, 1mm Range Sn, PNP, NO, M8 Connector, 5 x 36mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
$179.69
Baumer
IFRM 05P15A3/S05L
Inductive Proximity Sensor, Subminiature, M5, Flush, 6-30VDC, 1mm Range Sn, PNP, NO, M5 Connector, 5 x 24mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
$154.98
Baumer
IFRM 04P35B1/KS35PL
Inductive Proximity Sensor, Ø4x22mm, Flush, 10-30VDC, 0.8mm Range, PNP NC, M8 Flylead, IP67
$253.20
Baumer
IFRM 04N37A3/KS35PL
Inductive Proximity Sensor, Ø4x20mm, Flush, 10-30VDC, 1.6mm Range, NPN NC, M8 Flylead, IP67
$213.00
