Baumer
IFRM 04N35A3/KS35PL
Inductive Proximity Sensor, Ø4x20mm, Flush, 10-30VDC, 1mm Range, NPN NC, M8 Flylead, IP67
$211.80
IFRM 04N35A3/L
Alt: 10144443
$190.90
Inductive Proximity Sensor, Ø4x20mm, Flush, 10-30VDC, 1mm Range, NPN NC, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

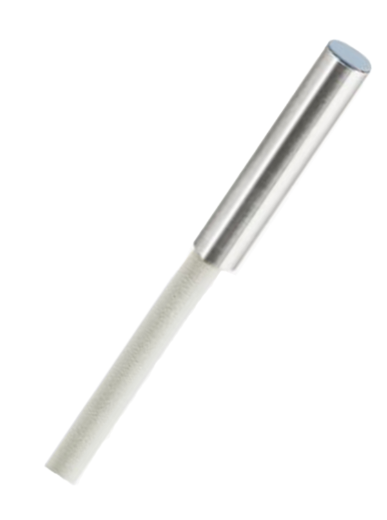

Inductive Proximity Sensor, Ø4x20mm, Flush, 10-30VDC, 1mm Range, NPN NC, 2m Cable, IP67
Features Include:
- Nominal Sensing Distance Sn: 1 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency: < 5 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): LCP
- Housing Material: Stainless Steel
