Baumer
IFRM 04P17A3/S35L
Inductive Proximity Sensor, Ø4x36mm, Flush, 10-30VDC, 1.6mm Range, PNP NO, M8 Connector, IP67
$144.49

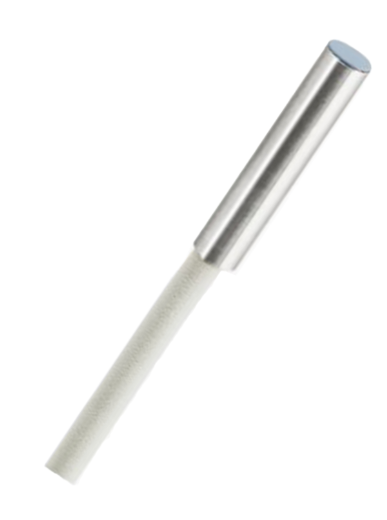

IFRM 04P17A3/PL
Alt: 11082409, *Includes 6% Tariff from Manufacturer
$168.56
Inductive Proximity Sensor, Ø4x20mm, Flush, 10-30VDC, 1.6mm Range, PNP NO, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø4x20mm, Flush, 10-30VDC, 1.6mm Range, PNP NO, 2m Cable, IP67
Features Include:
- Nominal Sensing Distance Sn: 1.6 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 3 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): LCP
- Housing Material: Stainless Steel
