Baumer
IFRM 03N1713/QL
Inductive Proximity Sensor, Ø3x12mm, Flush, 6-30VDC, 1mm Range, NPN NO, 0.5m Wires, IP67
$247.50
IFRM 03N1713/L
Alt: 11166559
$226.50
Inductive Proximity Sensor, Ø3x16mm, Flush, 10-30VDC, 1mm Range, NPN NO, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

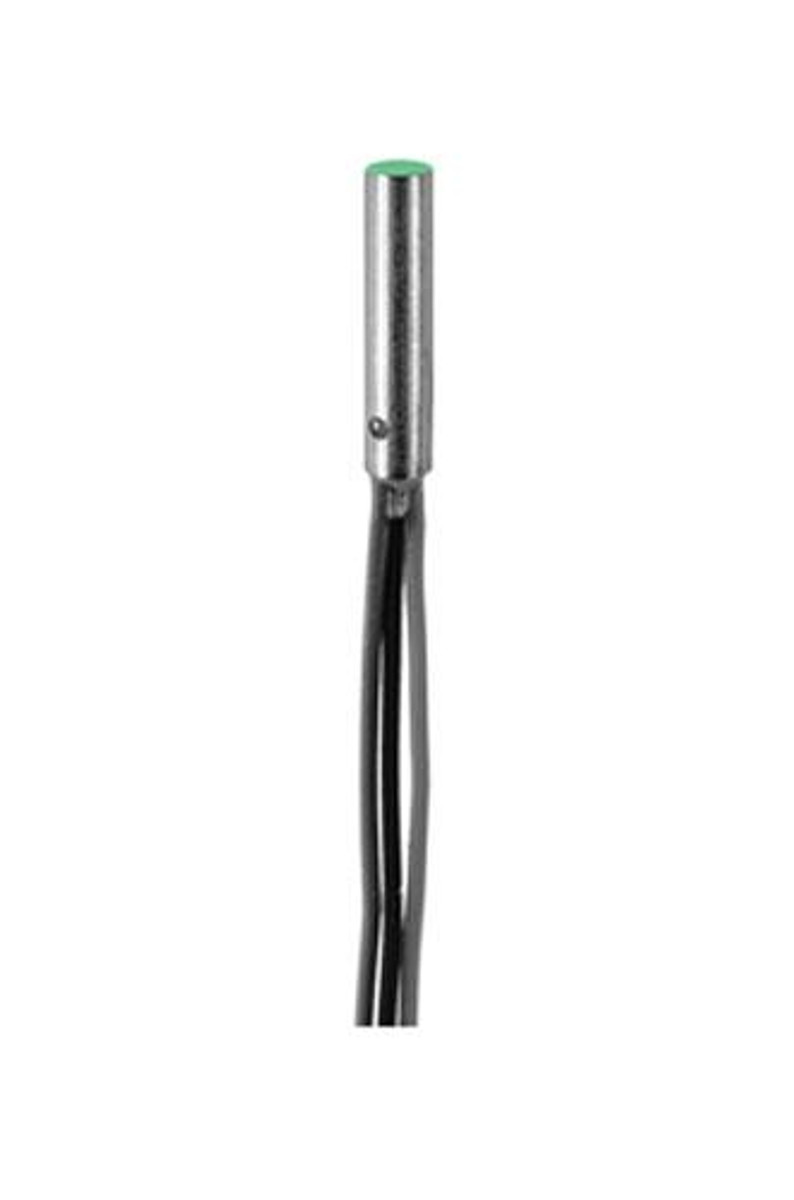

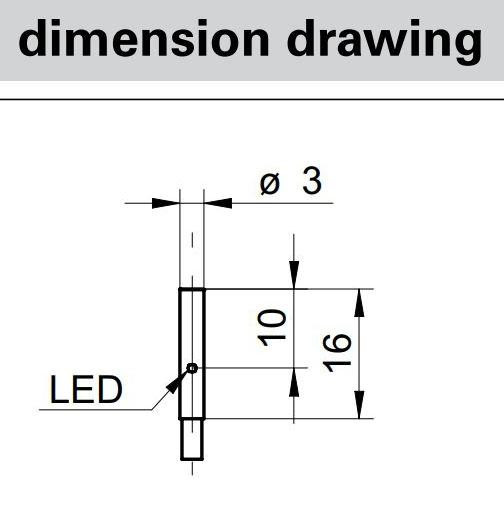

Inductive Proximity Sensor, Ø3x16mm, Flush, 10-30VDC, 1mm Range, NPN NO, 2m Cable, IP67
Features Include:
- Nominal Sensing Distance Sn: 1 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency: < 4 kHz
- Voltage Supply Range +Vs: 6 - 30 VDC
- Current Consumption Max. (no load): 10 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): POM
- Housing Material: Stainless Steel
Need More Information?
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IFRM 06N17A1/L
Inductive Proximity Sensor, Ø6.5x40mm, Flush, 10-30VDC, 2mm Range, NPN NO, 2m Cable, IP67
$146.80
Baumer
IFRM 18P37A5/L
Inductive Proximity Sensor, Ø18x35mm, Quasi-Flush, 10-30VDC, 8mm Rnage, PNP NC, 2m Cable, IP67
$130.10
Baumer
IFRM 18P17A4/L
Inductive Proximity Sensor, Ø18x65mm, Quasi-Flush, 10-30VDC, 8mm Range, PNP NO, 2m Cable, IP67
$130.10
Baumer
IFRM 18P17A5/L
Inductive Proximity Sensor, Ø18x35mm, Quasi-Flush, 10-30VDC, 8mm Range, PNPNo, 2m Cable, IP67
$124.60
