Baumer
IFRM 05N15A5/Q
Inductive Proximity Sensor, Subminiature, M5, Flush, 6-30VDC, 1mm Range Sn, NPN, NO, 0.5m Wires, 5 x 15mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
$236.29
IFRM 03N1503/Q
Alt: 10138311
$277.29

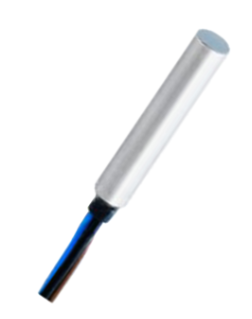

Inductive Proximity Sensor, Ø3x16mm, Flush, 10-30VDC, 0.8mm Range, NPN NO, 0.5m Wires, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø3x16mm, Flush, 10-30VDC, 0.8mm Range, NPN NO, 0.5m Wires, IP67
Features Include:
- Nominal Sensing Distance Sn: 0.8 mm
- Mounting Type: Flush
- Hysteresis: 2 - 20% of Sr
- Switching Frequency: < 3 kHz
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 12 mA
- Voltage Drop: < 2 VDC
- Output Current: < 100 mA
- Material (sensing face): POM
- Housing Material: Stainless Steel
