Baumer
IFRM 12P3701/S35L
Inductive Proximity Sensor, Ø12x50mm, Flush, 12-30VDC, 4mm Range, PNP NC, M8 Connector, IP67
$102.60
IFRM 12P3701/L
Alt: 10213082
$128.29

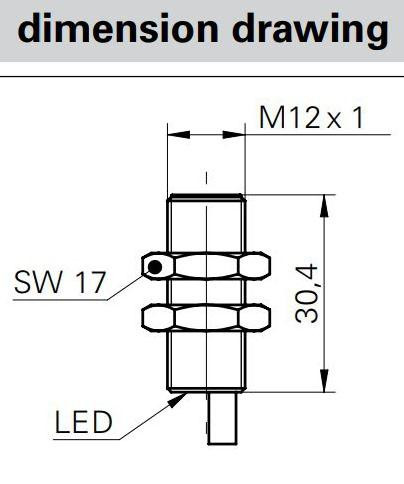

Inductive Proximity Sensor, Ø12x30.4mm, Flush, 10-30VDC, 4mm Range, PNP NC, 2m Cable, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Inductive Proximity Sensor, Ø12x30.4mm, Flush, 10-30VDC, 4mm Range, PNP NC, 2m Cable, IP67
Features Include:
- Nominal Sensing Distance Sn: 4 mm
- Mounting Type: Flush
- Hysteresis: 3 - 20% of Sr
- Output Indicator: LED red
- Switching Frequency:< 2 kHz
- Voltage Supply Range +Vs:10 - 30 VDC
- Current Consumption Max. (no load): 10 mA
- Voltage Drop: < 2 VDC
- Output Current: < 200 mA
- Material (sensing face): PBT
- Housing Material: Nickel Plated Brass
