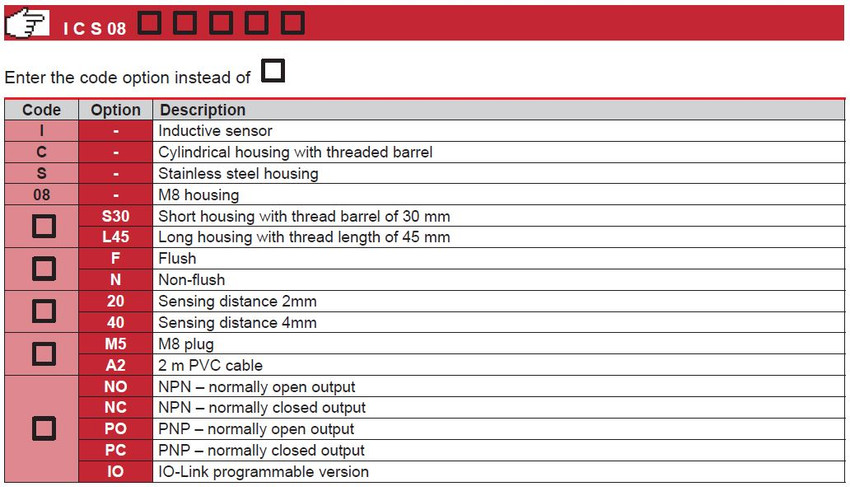

ICS08L45N02POM5
Alt: ICS Series
Inductive Proximity Sensor, Cylindrical, 3-Wire DC, Non-Flush, 2mm Sensing Range, PNP, NO, Stainless Steel Long Housing with Thread Length of 44mm, M8 Disconnect Plug, IP67
- Minimum Purchase:
- 1 unit
Carlo Gavazzi's E1-Rated ICS series of inductive proximity sensors were specifically designed for the challenging applications on mobile equipment.
These sensors offer unrivaled performance focusing on reliable detection and reduced downtime.
E1-approved inductive sensors give you accurate and reliable detection of actuating parts such as hydraulic pistons, gear speed, crane position and movement on refuse vehicles, mobile cranes, concrete mixers, tractors, fire trucks, harvesting equipment, buses, forklifts, and more.
These mobile platforms are typically exposed to high levels of shock and vibration from the terrain, exposure to salt and debris from the road and vehicle engine refuse gases, extreme voltage peaks if a battery is disconnected from the alternator, wide operating temperature ranges due to the environment and proximity to engines and exhaust systems, and electromagnetic interferences generated by radio transmitters.
What is an E1 Certified Sensor?
On mobile equipment, sensors must operate in very low ambient temperatures as well as very high operating temperatures (heat from engines and exhaust systems). Thanks to their special design, Carlo Gavazzi E1 sensors can operate continuously between -40°C to +85°C (-40° to +185°F).
Additional features:
- AISI 304 stainless steel housing
- IP68 and IP69K ingress protection rating
- Salt spray tested (EN 60068-2-52 Kb)
- Shock resistance up to 100g continuous 40g shock (EN 60068-2-27 Ea)
- Vibration resistance to 20g (EN 60068-2-6)
- Load-dump protection (ISO 7637-2 / SAE J1113-11)
- Operating temperature range -40 to 185°F
Features Include:
- Rated operating distance: 2 mm
- Installation type: Non-flush
- Diameter: M8
- Output type: PNP
- Output function: Normally Open (NO)
- Connection type: Cable
- Housing type: Cylindrical, threaded barrel
- Housing material: Metal
- Rated power supply: 10 - 36 V
- Degree of protection: IP67
Technical Information:
- Carlo Gavazzi ICS08 Miniaturized Proximity Inductive Sensors Technical Data
- Carlo Gavazzi IBS04, ICS05, ICS08, ICB12, ICB18, ICB30 IO-Link Inductive Sensors Instruction Manual
- Carlo Gavazzi E1 ICS Series Proximity Inductive Sensors Mobile Equipment Brochure
- Carlo Gavazzi E1 ICS Series Proximity Inductive Sensors Application Note for Manufacturers of Agricultural Machinery
- Carlo Gavazzi E1 ICS Series Proximity Inductive Sensors Application Note for Manufacturers of Concrete Mixer Trucks
- Carlo Gavazzi E1 ICS Series Proximity Inductive Sensors Application Note for Manufacturers of Mobile Cranes
- Carlo Gavazzi E1 ICS Series Proximity Inductive Sensors Application Note for Manufacturers of Fire Trucks
- Carlo Gavazzi E1 ICS Series Proximity Inductive Sensors Application Note for Manufacturers of Garbage Trucks
