IR12.P10S-N60.PO1Z.7BO
Baumer

IR12.P10S-N60.PO1Z.7BO

Alt: 11148572

$148.09

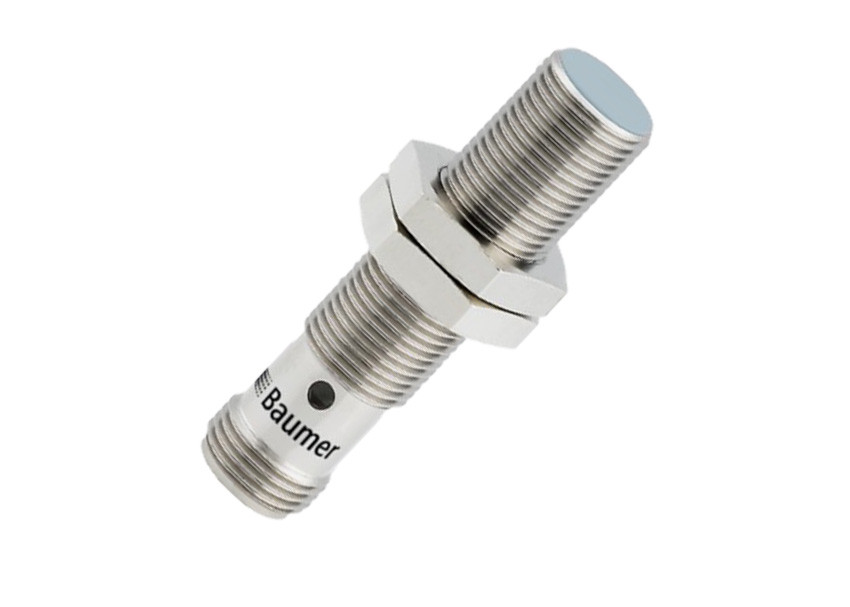

Inductive Proximity Sensor, Ø12x60mm, NonFlush, GammaProx, 6-36VDC, 10mm Range, PNP NO, M12, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Inductive Proximity Sensor

Features Include:

  • Mounting Type: Non-Flush
  • Special Type: Enhanced distance (GammaProx)
  • Nominal Sensing Distance Sn: 6 mm
  • Voltage Supply Range: 6 - 36 VDC
  • Current Consumption Max. (no load): 12 mA
  • Output Current: < 100 mA
  • Hysteresis: 3 - 20 % of Sr
  • Switching Frequency: < 400 kHz
  • Output Circuit: PNP make function (NO)
  • Connection: Connector M8
  • Operating Temperature: -25 - 75 °C
  • Protection Rating: IP 67
