$7.04
HR710-2PL-220VAC
$7.04

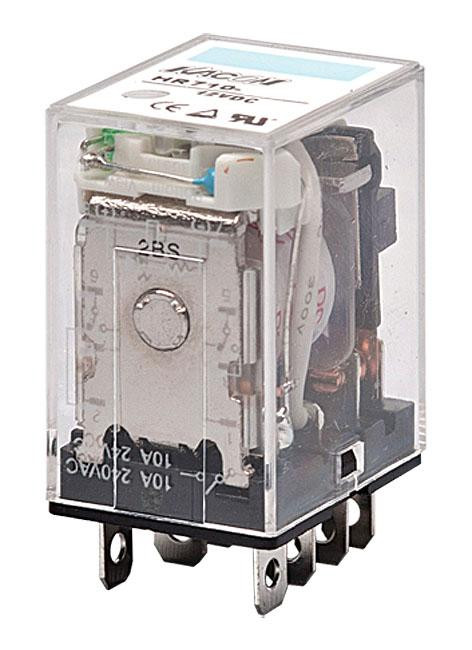

Ice Cube Relay, 10A DPDT, 220VAC Input, LED, Socket Required
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Configuration: DPDT (2NO + 2NC)
- Material: Ag alloy (24K gold plate)
- Max. Switching Current: 10A
- Rated Max. Resistive Load: 10A at 24VDC/220VAC
- Max. Switching Voltage: 125VDC/ 250VAC 50/60Hz
- Min. Switching Requirement: 100mA 5VDC
- Operating Time: 25ms
- Insulation Resistance: 100MΩ at 500V DC
- Vibration Resistant: 10~55Hz at double amplitude of 1.5mm
- 705 Series are designed with compact housing & ICE cube style, silver alloy contact, LED indicator, high reliability and long life
- Available Serge protection type to protect malfunction of PLC, electronic devices from back EMF
Need More Information?
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Kacon
HR710-2PL-110VDC
Electro Mechanical Relay, Cube Type, 10A, DPDT, 110VDC Coil Input, LED Indicator, Socket Required
$7.04
Kacon
HR710-2PL-110VAC
Electro Mechanical Relay, Cube Type, 10A, DPDT, 110VAC Coil Input, LED Indicator, Socket Required
$7.04
Kacon
HR710-2PL-12VDC
Electro Mechanical Relay, Cube Type, 10A, DPDT, 12VDC Coil Input, LED Indicator, Socket Required
$7.04
Kacon
HR705-2PL-220VAC
Electro Mechanical Relay, Cube Type, 5A, DPDT, 220VAC Coil Input, LED Indicator, Socket Required
$6.08
