IDEC
HW-U01
Universal Contact Block, NC, IP20, Standard, Spring Up Terminals, Accepts Ring/Fork Terminals
$4.71
Product image is representative only, please verify specifications.
HW1L-M1F02QD-S-24V
Alt: This item replaces HW1L-M1F02Q-S-24V, Non-Cancellable, No Returns
$44.10

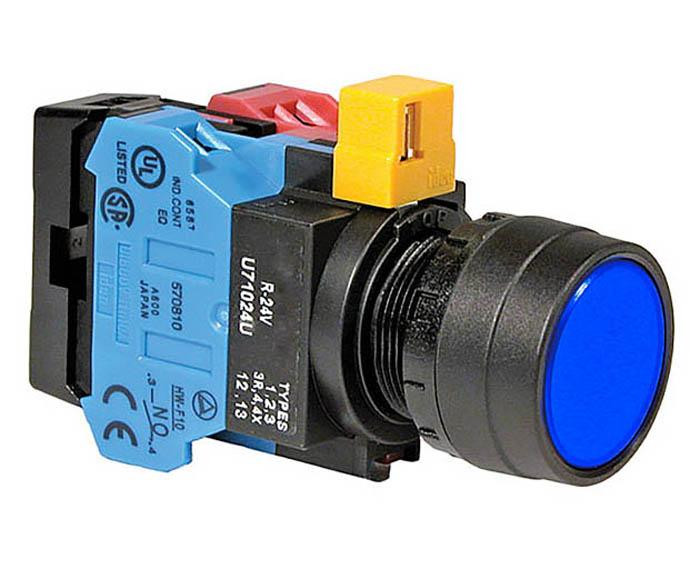

Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 2NC, Full Voltage, LED Blue, 24VAC/DC, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
The HW series from IDEC is a 22mm line of switches, pushbuttons and pilot lights.
- Space saving with reduced contact block depth
- IP20 finger-safe protection
- High voltage LED for illuminated pushbuttons
- Can be ordered assembled or in components
- Pushbuttons, e-stops and switches have contact ratings of 10A, 600V
- IP65 and UL50 in most cases (except illumuniated selector switches), dual pushbuttons are IP40
Series information:
- HWxB: Non-illluminated
- HWxL: Illuminated
- HW1 - Round black bezel
- HW2 - Square black bezel
- HW4 - Round metal bezel
Assembled units:
- Available in momentary (M) or Maintained (A)
- Contact configurations:
- 10: 1NO
- 01: 1NC
- 11: 1NO/1NC
- 20: 2NO
- 02: 2NC
- 22: 2NO/2NC
