IDEC
LSRD-2
LED Replacement Bulb, Pure White, 24VAC/DC, Replaced LSTD-2A, LSTD-2G, LSTD-2R and LSTD-2S
$6.80
Product image is representative only, please verify specifications.

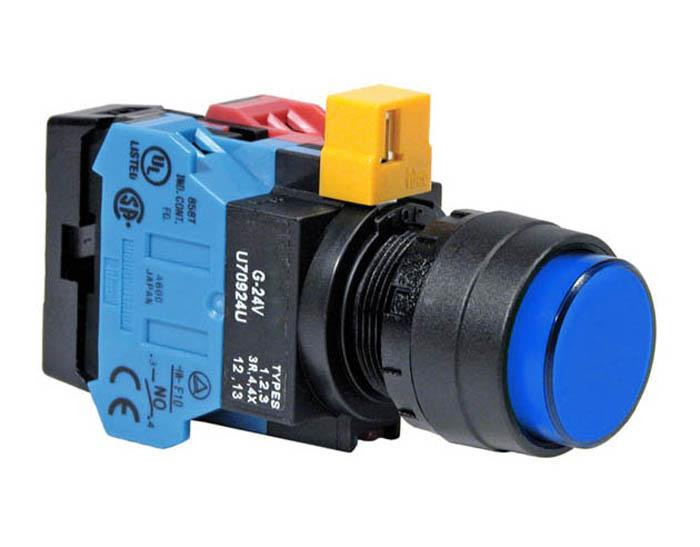

HW1L-A2F01QD-S-24V
Alt: HW Series, Non-Cancellable, No Returns
$46.91
Pushbutton, 22mm, Plastic, Round, Extended, Blue, LED, Maintained, 1NC, 24V, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
The HW series from IDEC is a 22mm line of switches, pushbuttons and pilot lights.
- Space saving with reduced contact block depth
- IP20 finger-safe protection
- High voltage LED for illuminated pushbuttons
- Can be ordered assembled or in components
- Pushbuttons, e-stops and switches have contact ratings of 10A, 600V
- IP65 and UL50 in most cases (except illumuniated selector switches), dual pushbuttons are IP40
Series information:
- HWxB: Non-illluminated
- HWxL: Illuminated
- HW1 - Round black bezel
- HW2 - Square black bezel
- HW4 - Round metal bezel
Assembled units:
- Available in momentary (M) or Maintained (A)
- Contact configurations:
- 10: 1NO
- 01: 1NC
- 11: 1NO/1NC
- 20: 2NO
- 02: 2NC
- 22: 2NO/2NC
Features Include:
- Finger safe (IP20) screw terminals standard
- Accept ring, fork or ferrule terminals and bare wires
- All E-Stops meet EN418 (IEC compliant, positive action)
- UL listed, CSA certified, TUV approved, and CE marked
- Super bright incandescent or LED illumination
- UL Type 4X, IP65
- 600V/10A contacts with a wide operating range from 5mA at 3V AC/DC to 10A at 120V AC
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
HW-U01
Universal Contact Block, NC, IP20, Standard, Spring Up Terminals, Accepts Ring/Fork Terminals
$4.71
$15.51
$1.09
IDEC
HW9Z-RL
Anti-Rotation Ring, Use with 22mm HW Series, Use with Notched Panel Cutout, Prevent Rotation
$0.54
$0.37
$2.97
$0.29
Menics
A204L-A2E01Q4S
Pushbutton, Ø22mm, Illuminated, Maintained, Metal Bezel Extended, 110V, 10A, 1NC, 24VAC/DC LED, Blue
$16.80
